Xp 38



Description

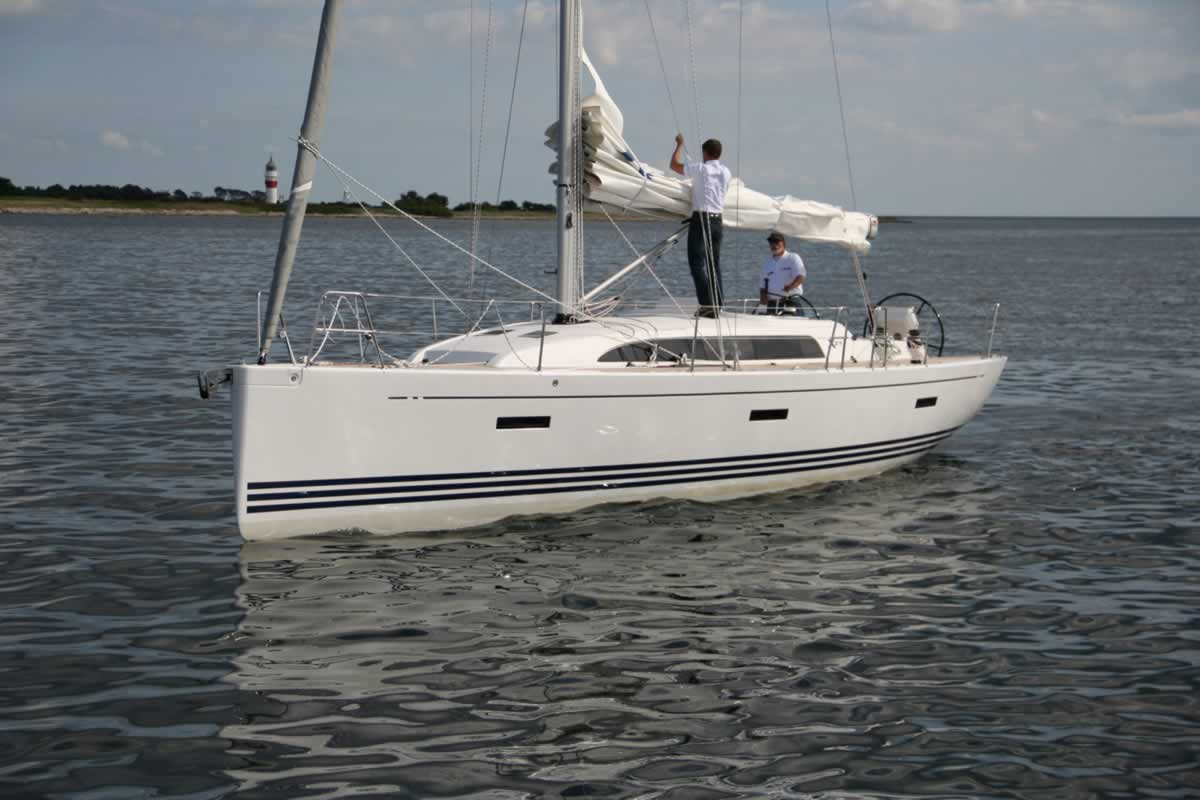

The Xp 38 delivers an unrivalled sailing experience in a dual-purpose cruiser-racer. This model after launching, quickly developed into a global fleet, with boats sold from Japan to Hungary, Switzerland to Australia.

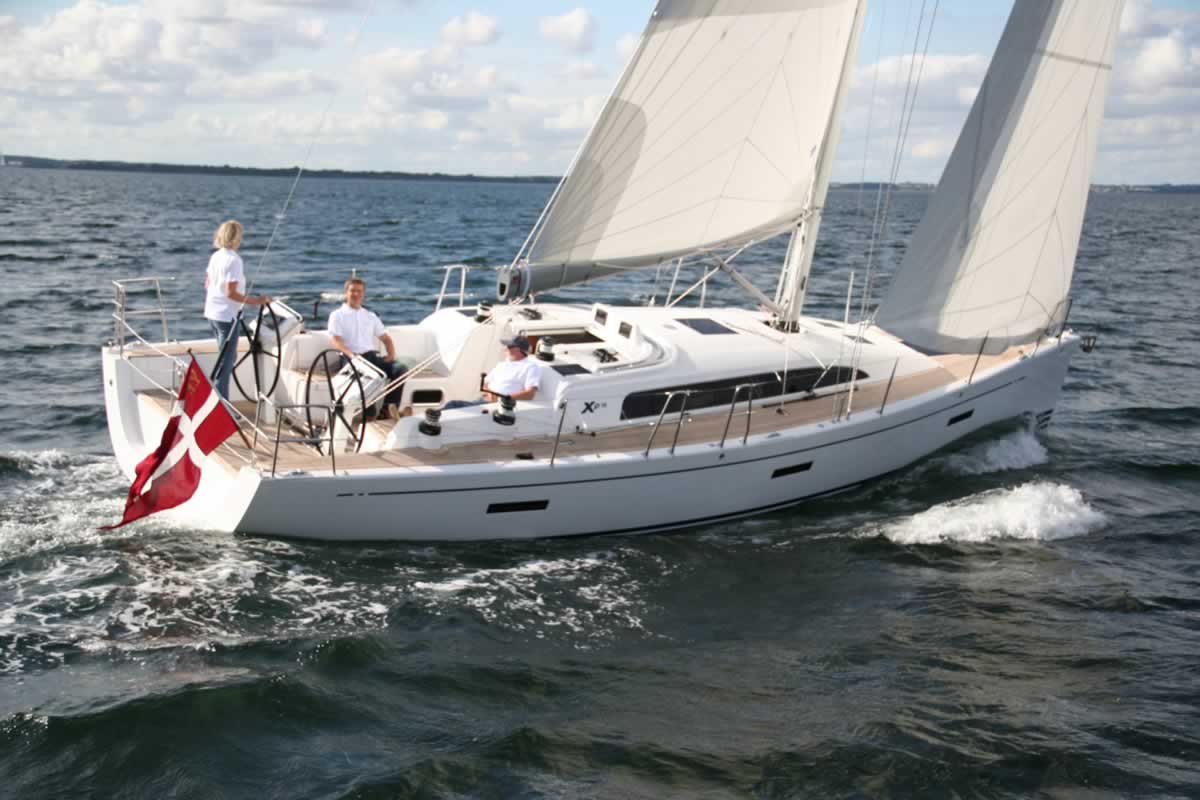

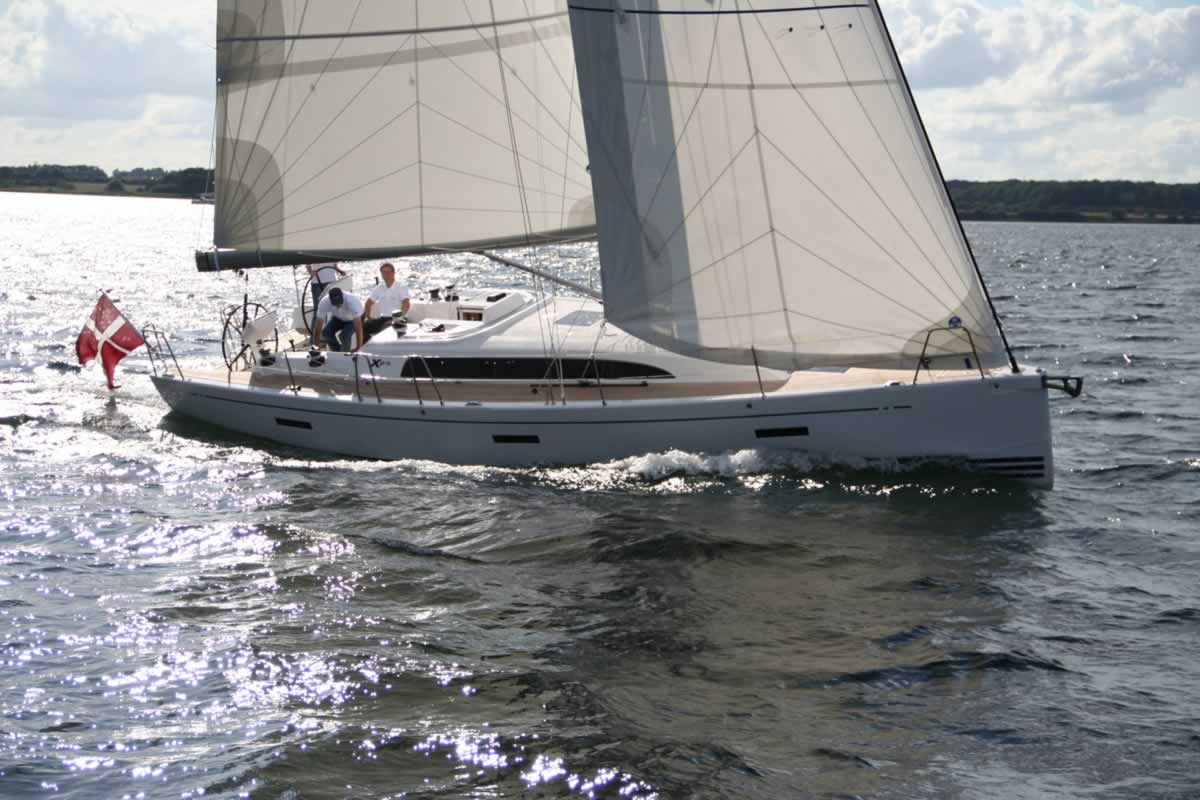

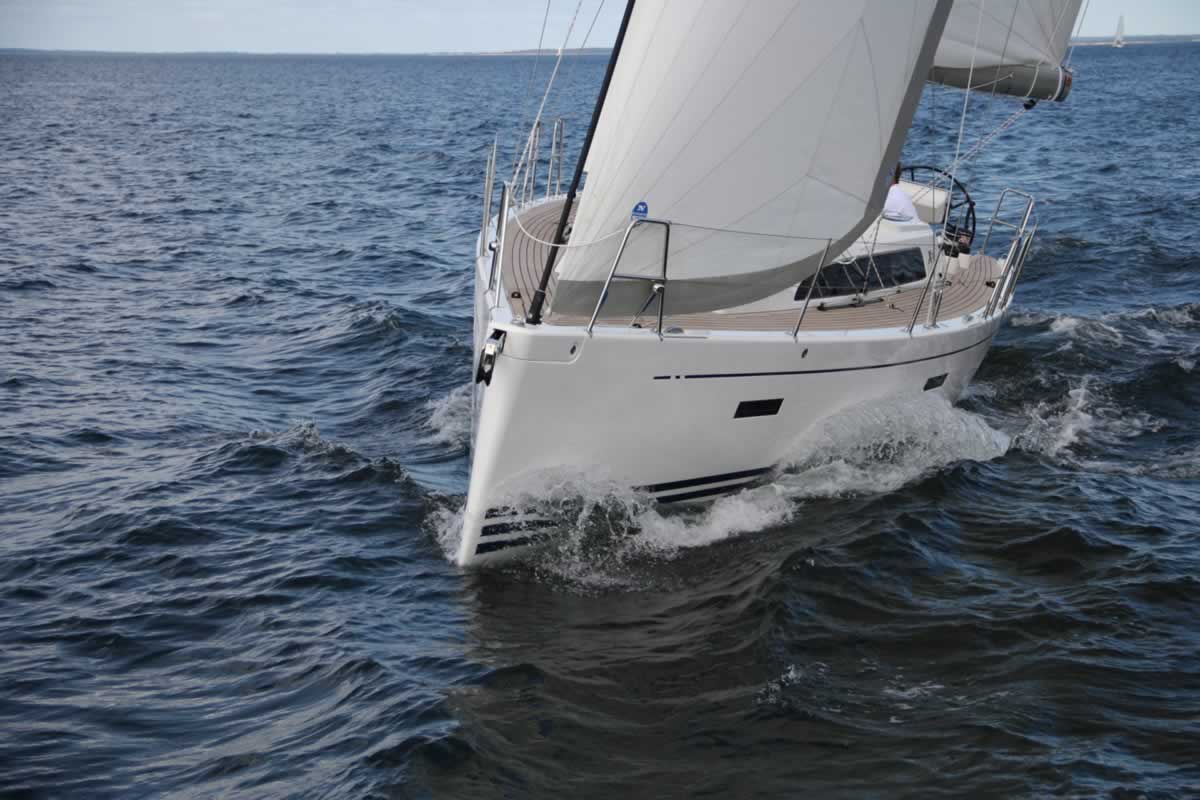

This enjoyment comes from the Xp 38’s high level of responsiveness, thanks to high ballast ratio, light and stiff epoxy infusion construction and carbon keel structure, and controllable sail plan. High stability and ease of handling makes the Xp 38 a rapid and comfortable luxury yacht to cruise with excellent sea-keeping in all conditions, as well as a high performance racing design for both inshore and offshore. It has scored a host of race victories under both IRC and ORC.

Exterior

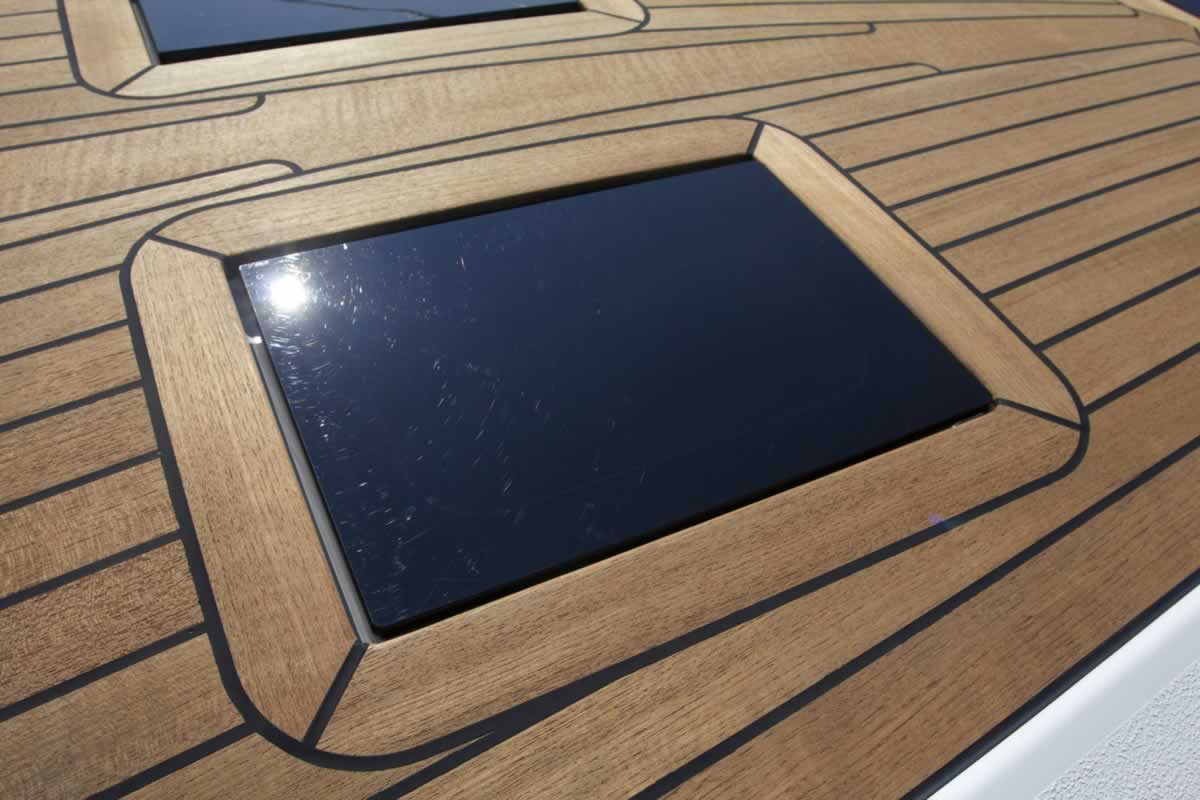

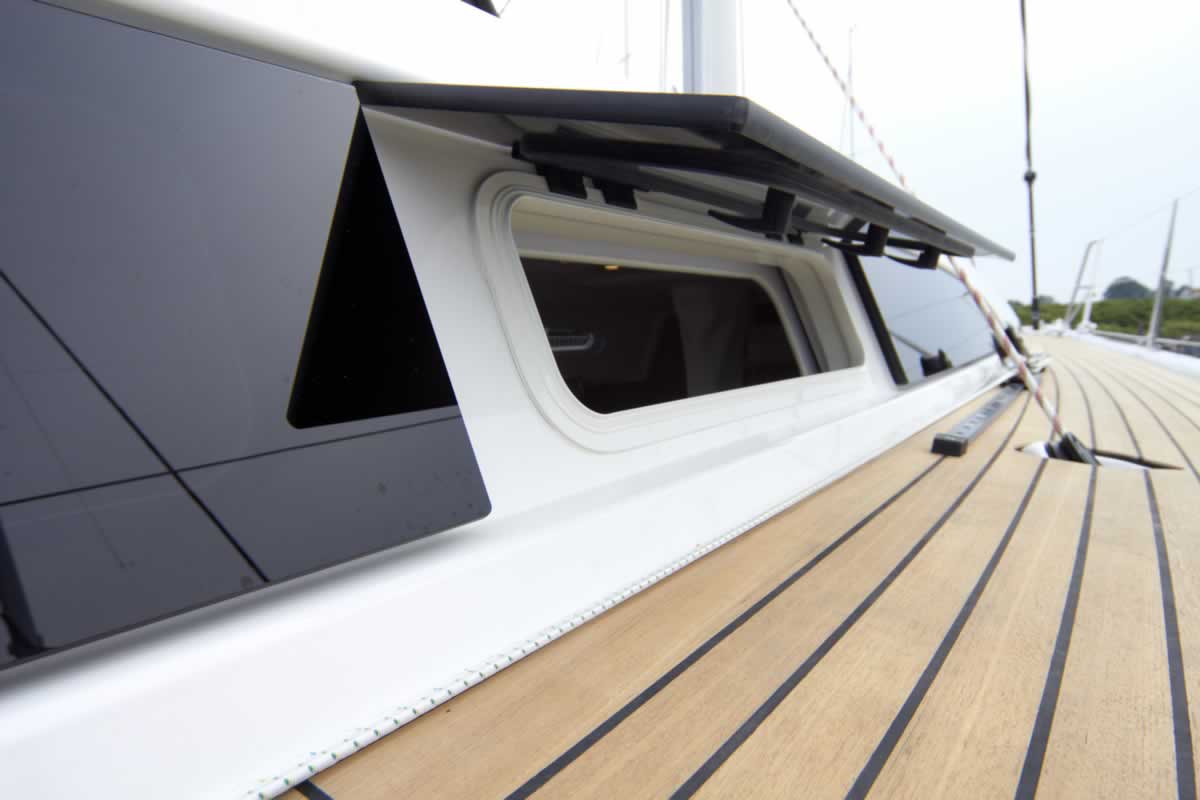

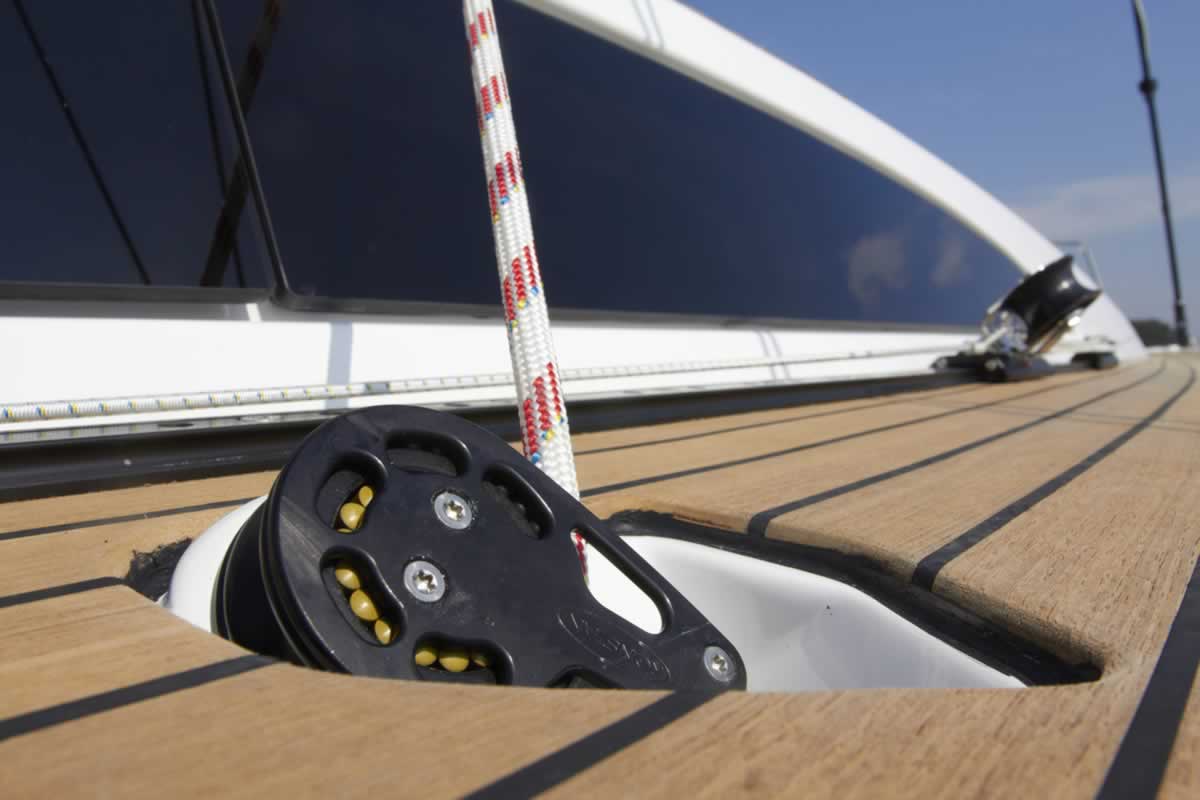

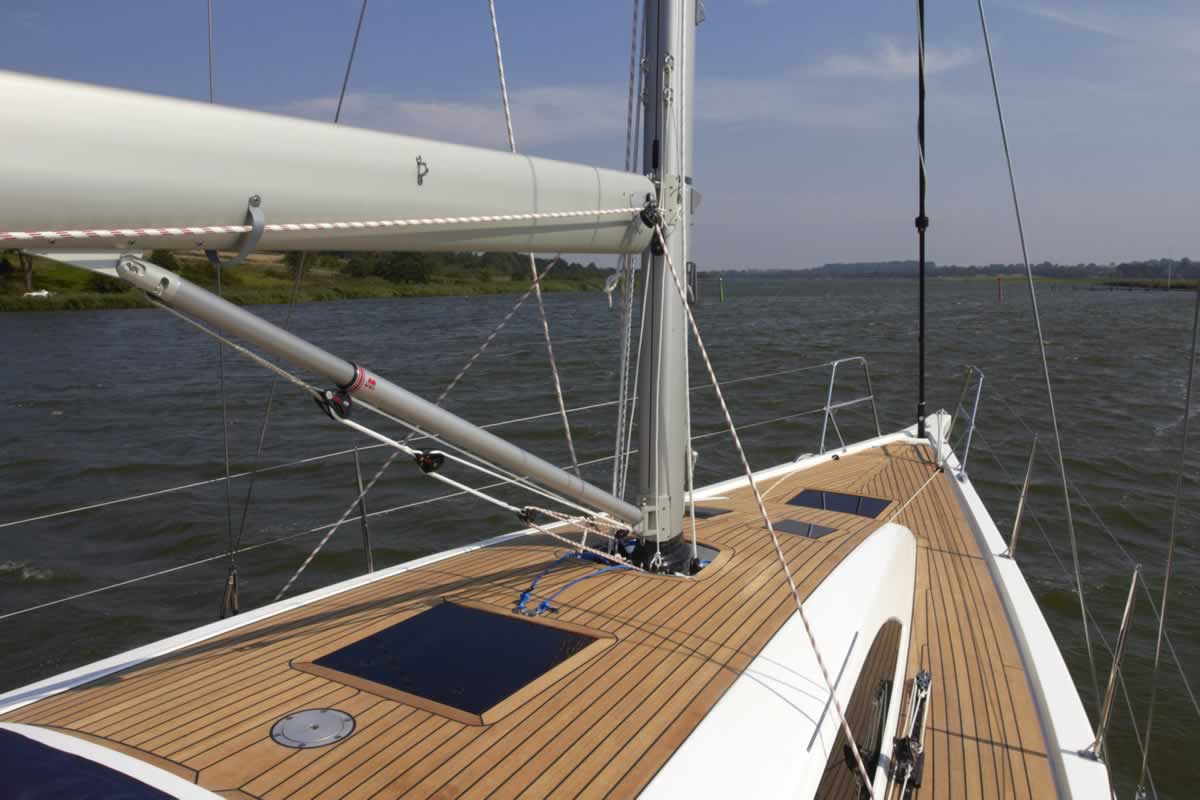

Deck-recessed halyards and control lines, flush deck hatches and port-lights create a clutter-free and aesthetically appealing deck layout.

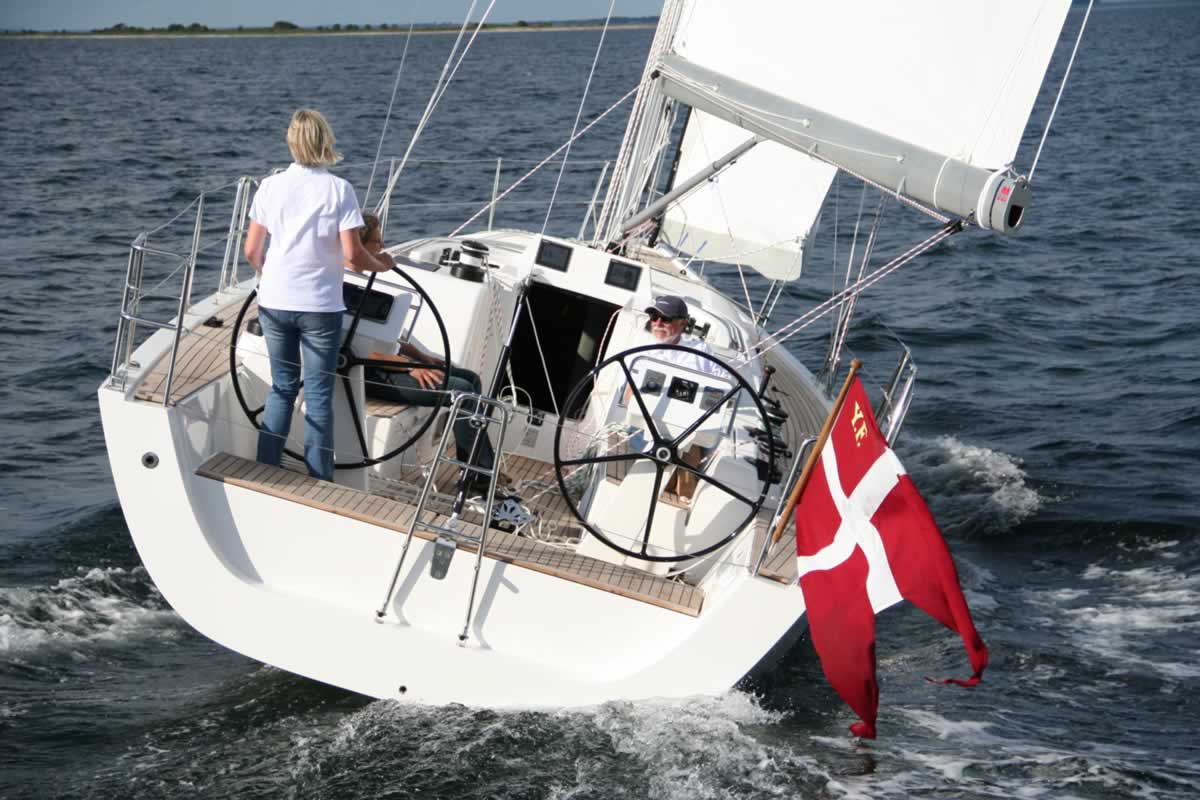

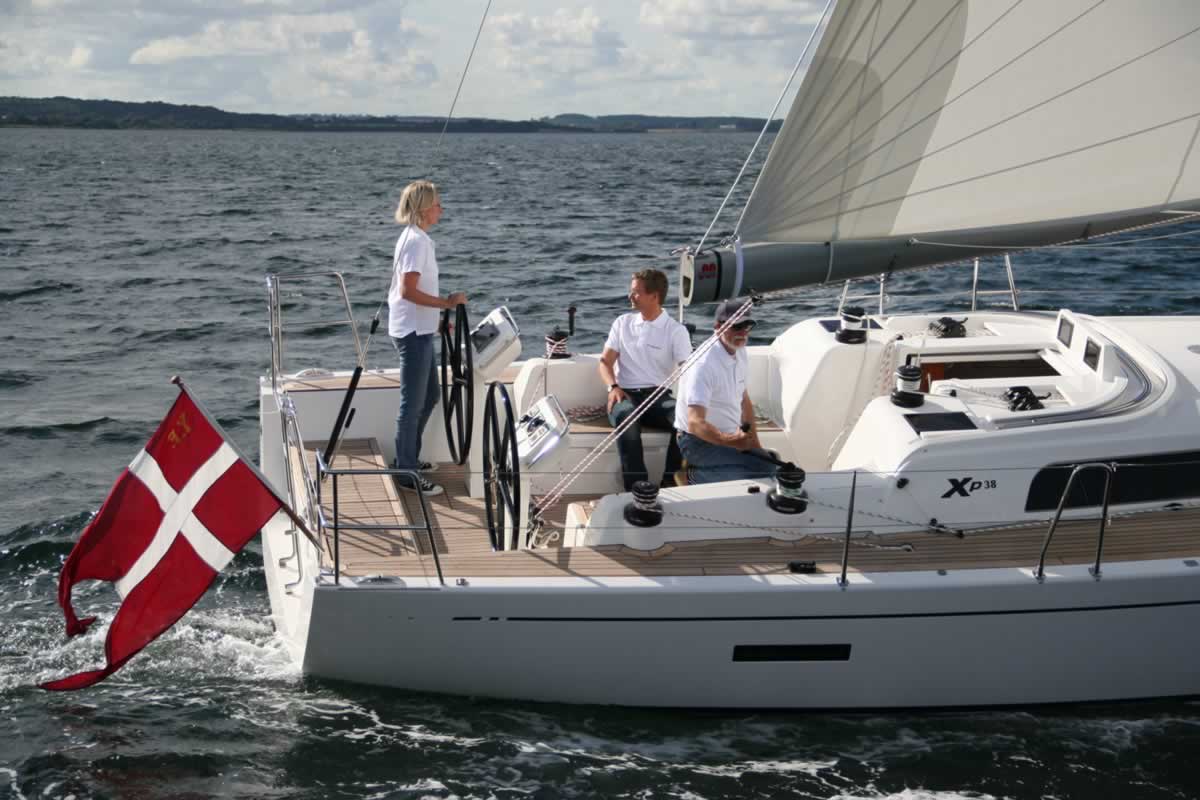

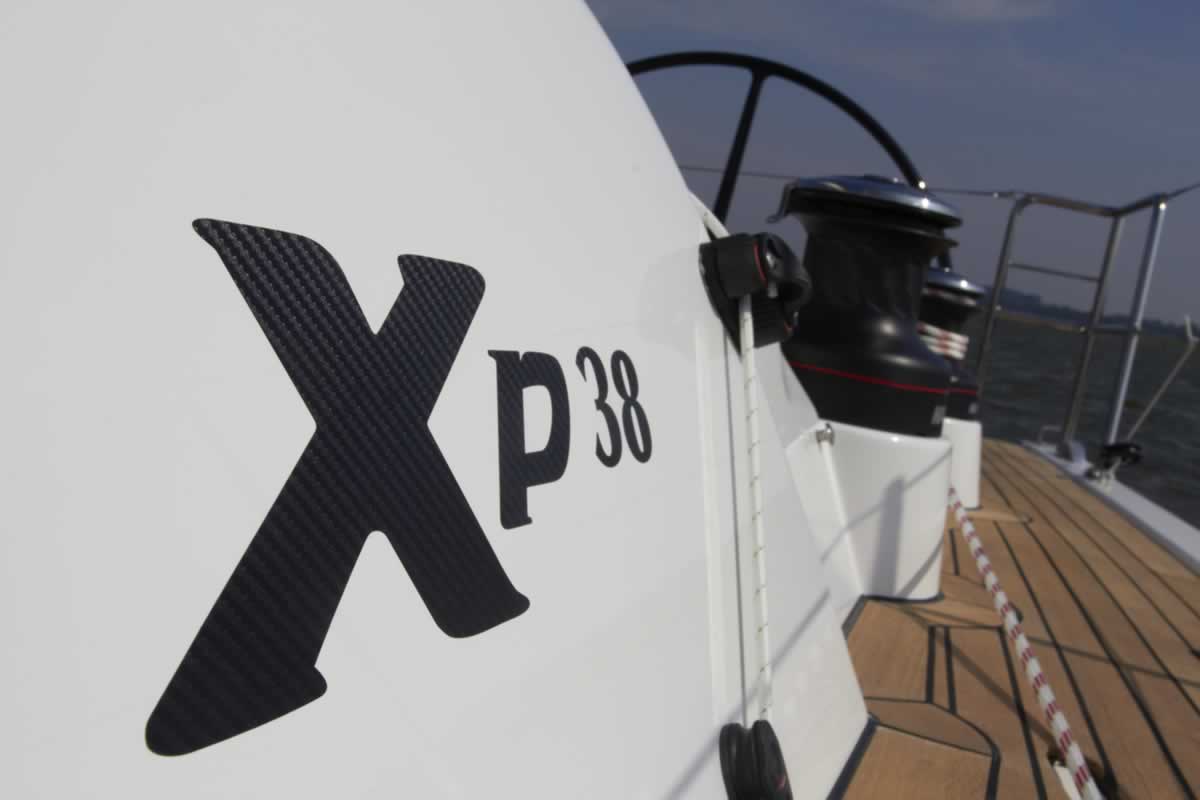

Design details include an optional folding table concealed within the cockpit sole, with dedicated storage for all the essentials – even the washboards. The twin composite wheels are offered with a range of pedestal choices, including compass and instrument mounts, together with optional electric or high-powered manual winches.

As with all the Xp models, the composite keel features a lead bulb and cast iron fin, precision moulded and encapsulated in a vacuum infused GRP layer for a perfect, hydrodynamic finish. Through hull fittings are also recessed to reduce underwater drag, together with a faired ‘S-drive’ engine strut.

Innovative Bowsprit

The Xp models were conceived as true dual-purpose yachts. The guiding principle is that the Xp 38 should be highly competitive when sailed with a full crew and also easily handled by a couple or family. It should be optimised for racing under major handicap rating systems, but equally suited to a relaxed weekend cruise or a longer blue-water passage.

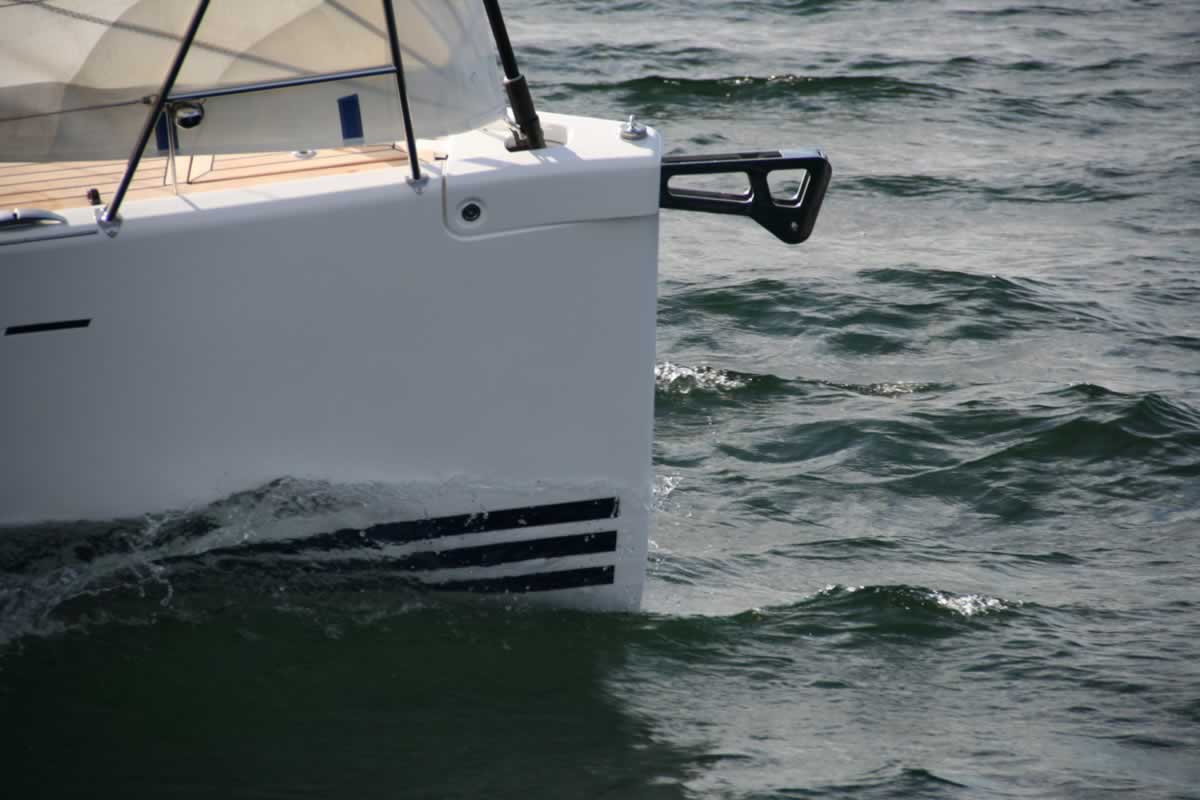

Key to this adaptability is the multi-functional bowsprit, which offers four variations. The standard fixture is a GRP cowl with integrated anchor fitting. This allows for asymmetric ‘Code’ sails and similar to be flown from a fixed tack point, whilst ensuring the steel anchor roller with electric windlass are easily accessible.

Two other popular options are a carbon bowsprit in either white painted finish or clearcoat black, with the additional option of an integrated anchor fitting. The sprit enables a full sail wardrobe of asymmetric spinnakers and reaching Code Zeros to be carried, particularly when racing under IRC. The anchor fitting is neatly concealed under the sprit.

A fourth option of a plain GRP cowl is offered, particularly for boats which may race under ORC. In addition to all of the above, a symmetric spinnaker pole can be carried for further flexibility.

Interior

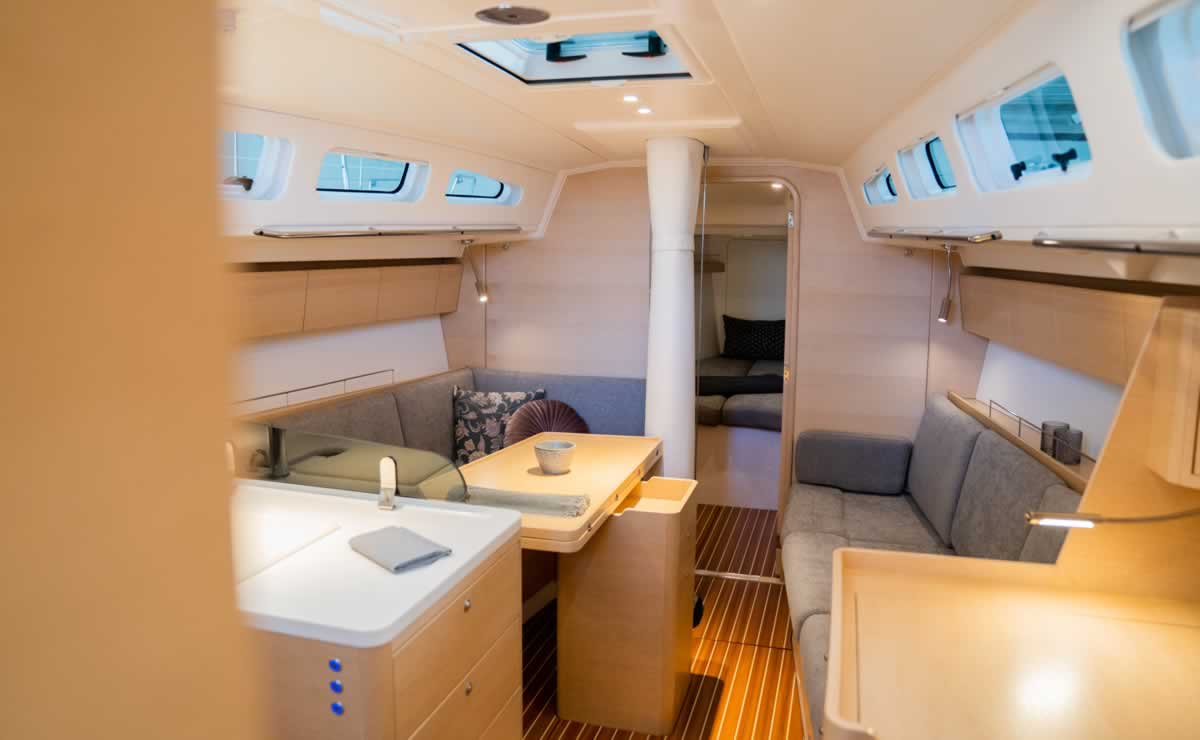

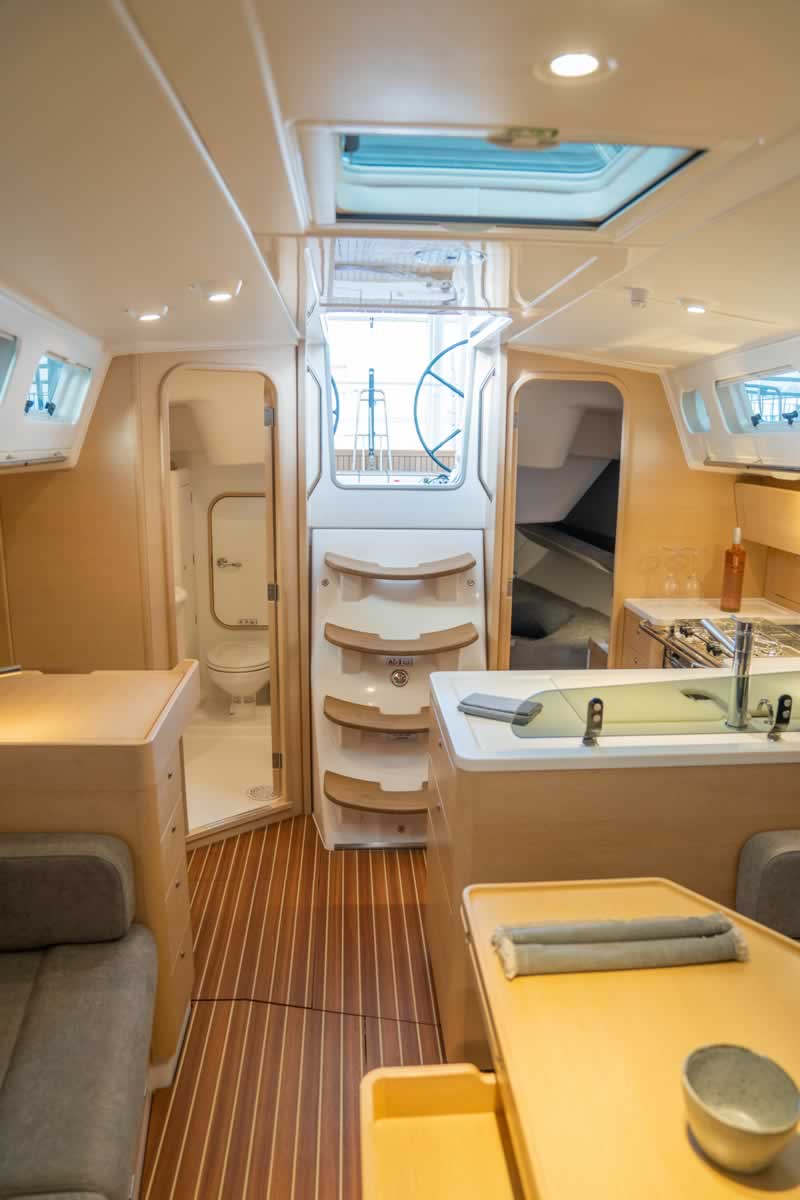

The Xp 38 interior combines innovation with classic comfort and style.

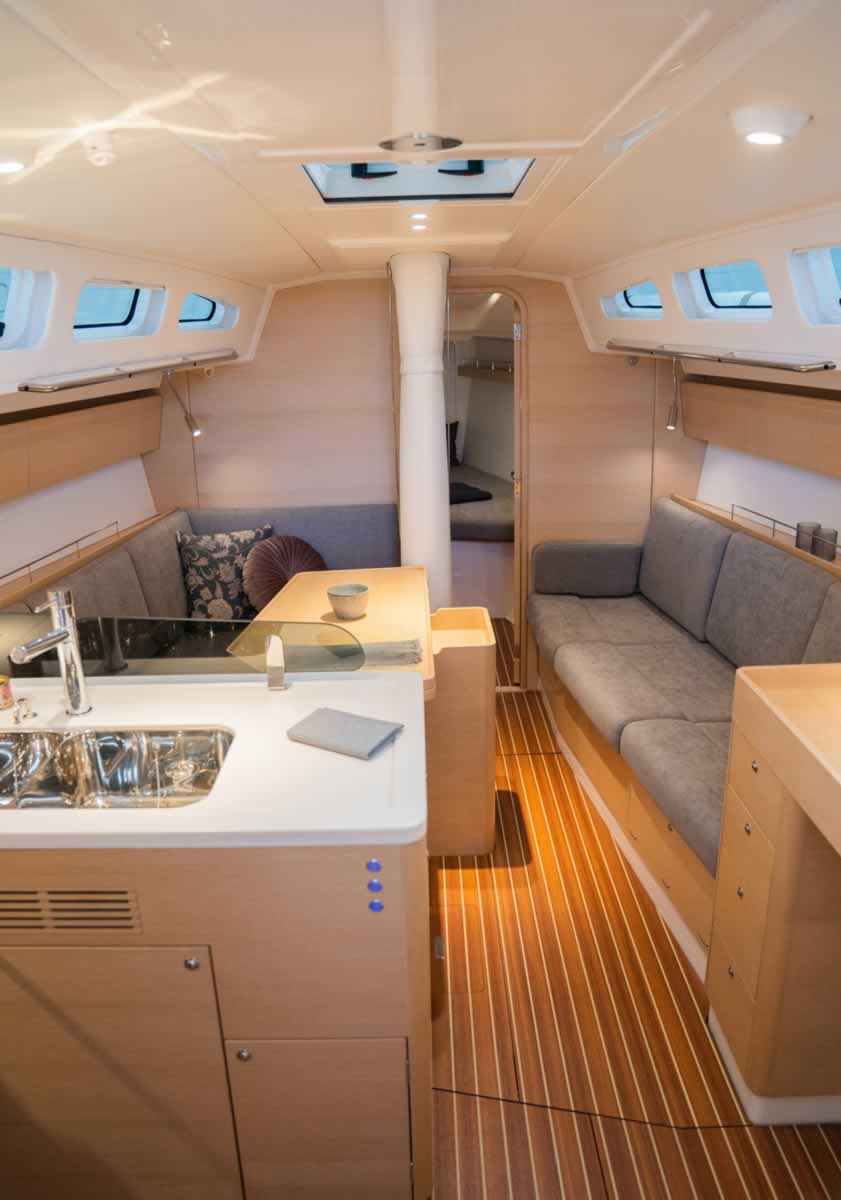

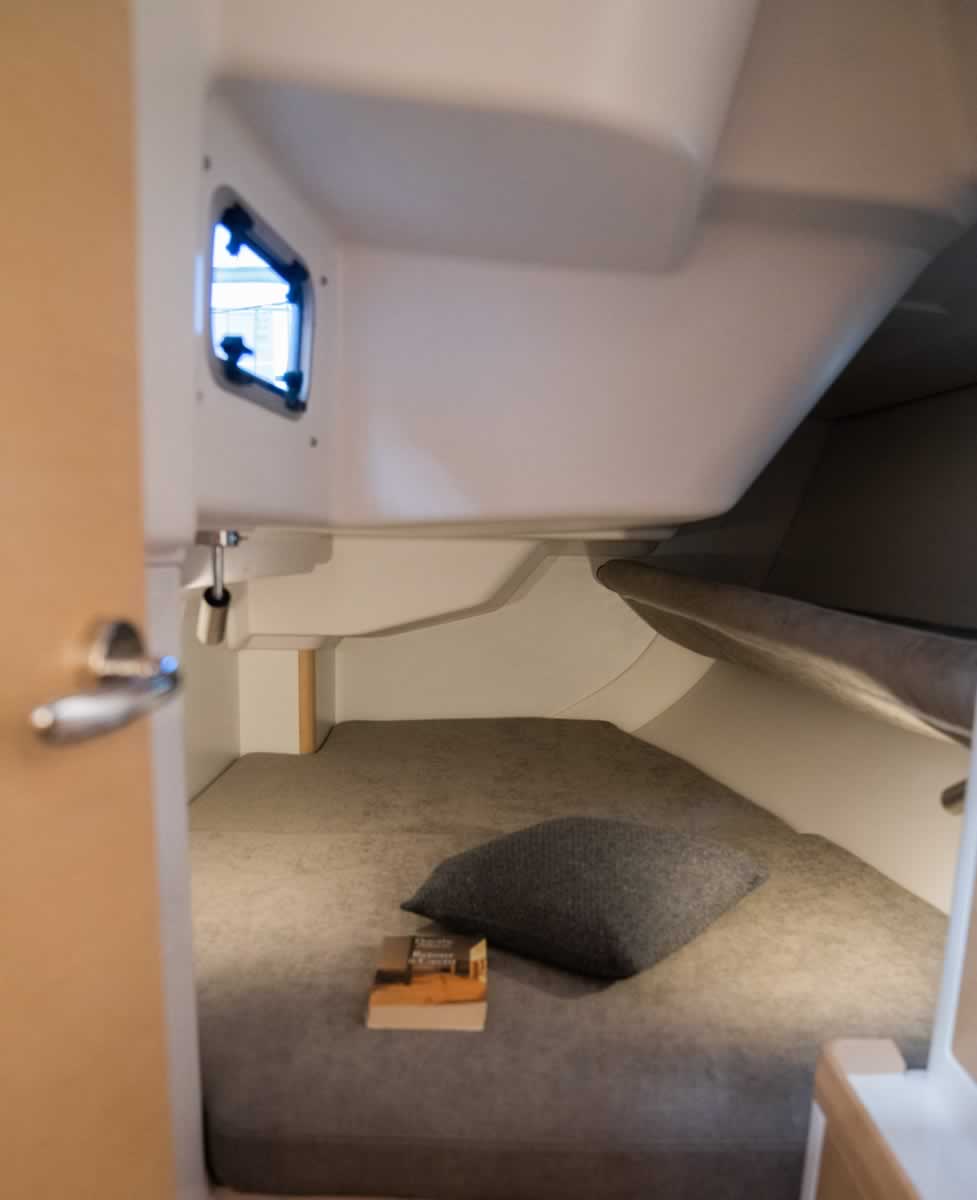

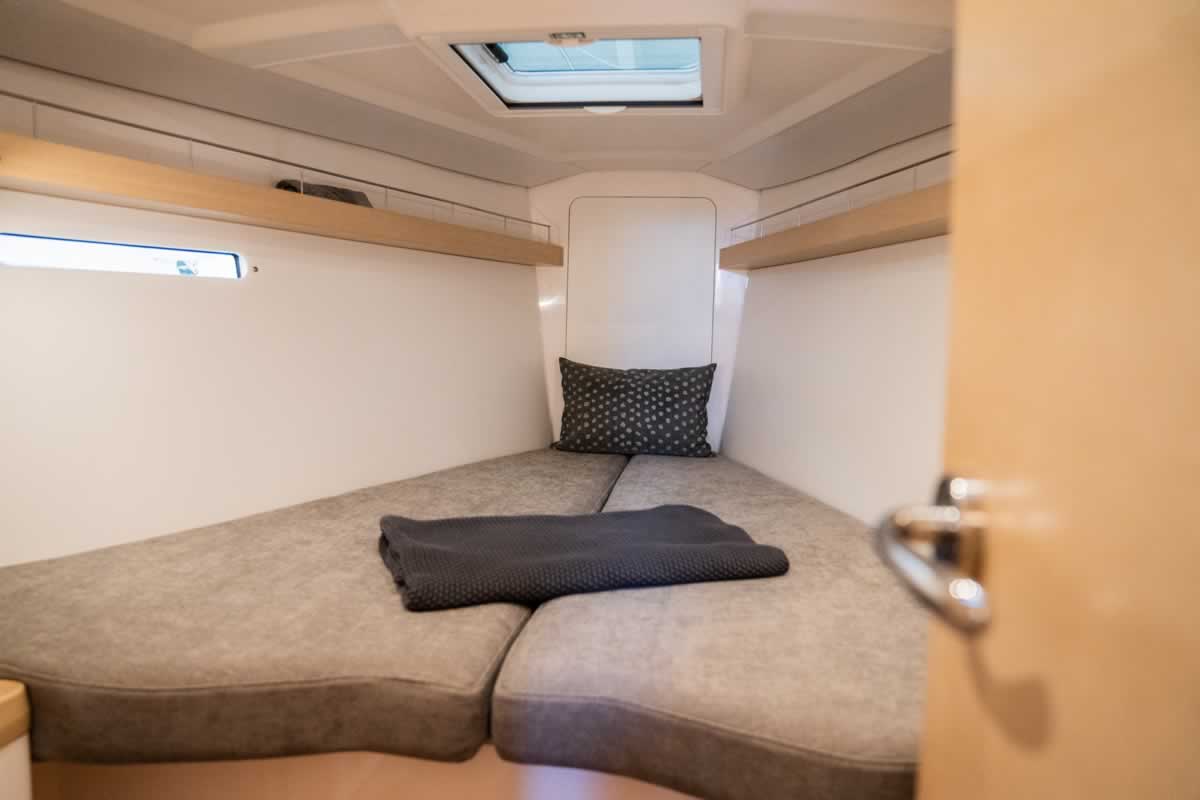

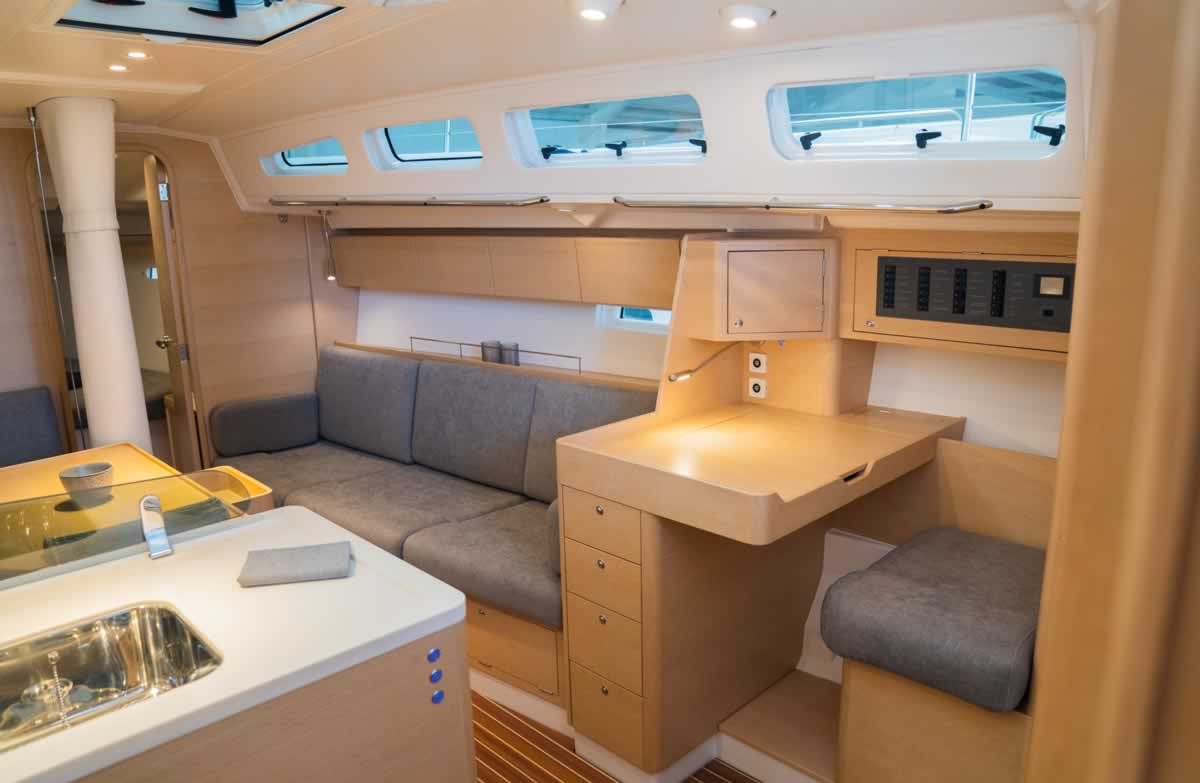

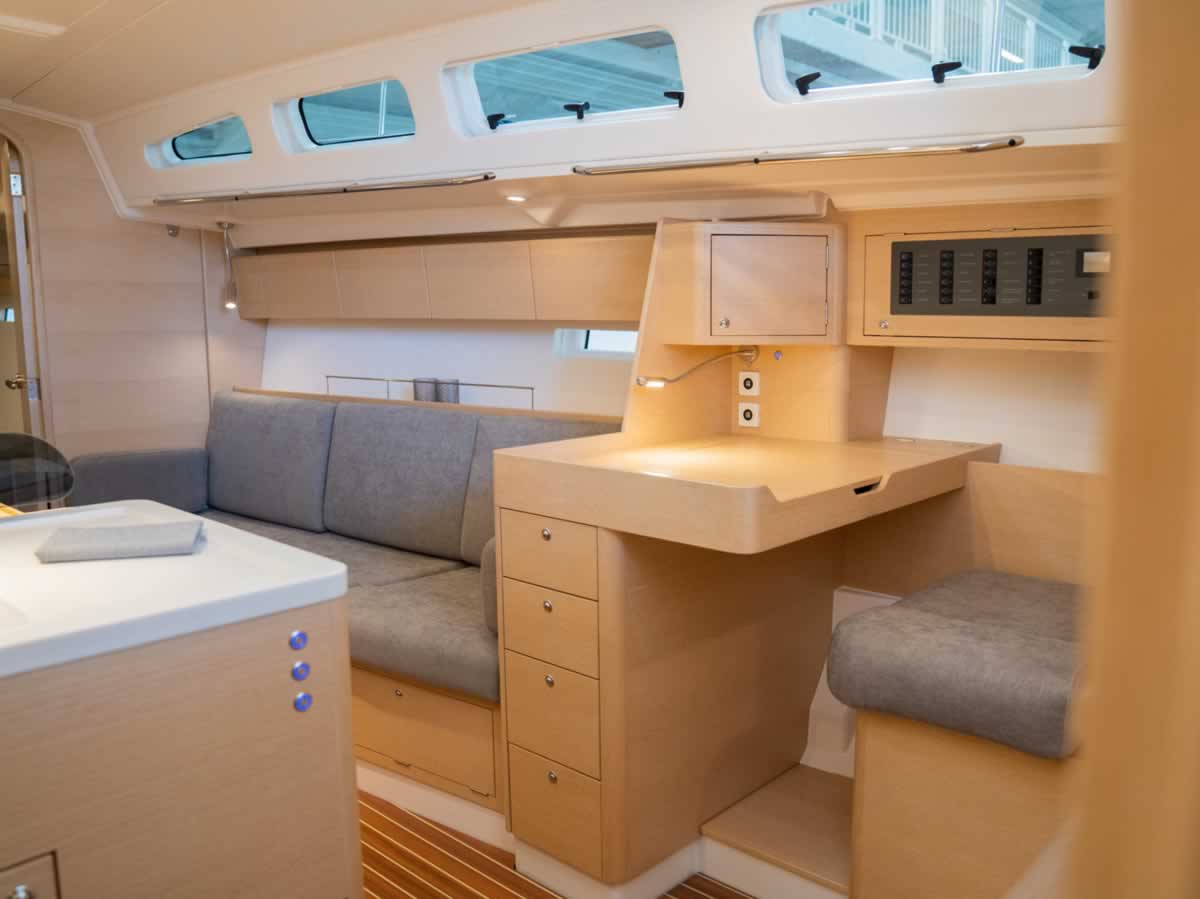

The Xp 38 interior is available in both three and two cabin layout versions, which both benefit from exemplary use of light and space. The Xperformance range’s innovative sliding chart table allows the navigator to be seated either forward or aft-facing, or for the chart table to be slid aft to increase the side berth seating. There is also a fixed chart table option which includes additional storage drawers, with both featuring an easily accessible electronics control panel and deep bookshelves above.

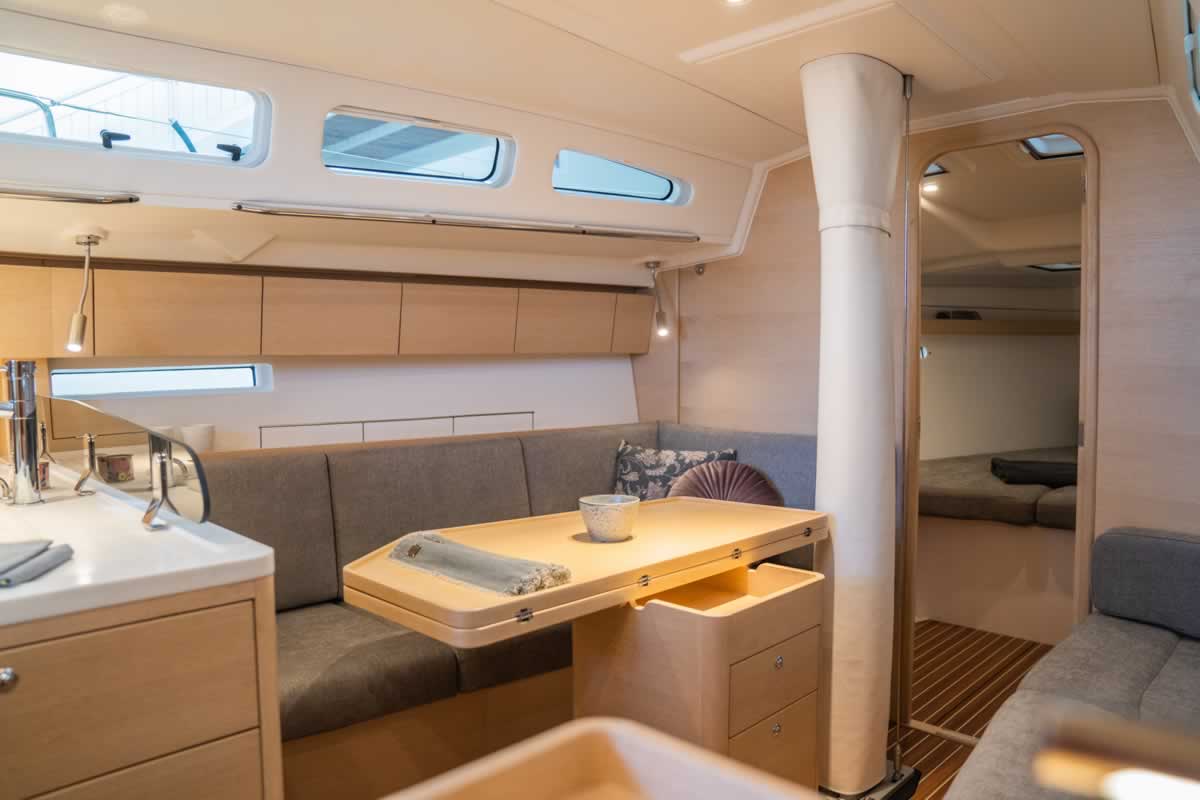

The saloon table also incorporates concealed storage, either drawers or bottle storage, and neatly folds away to facilitate crew movement whilst sailing.

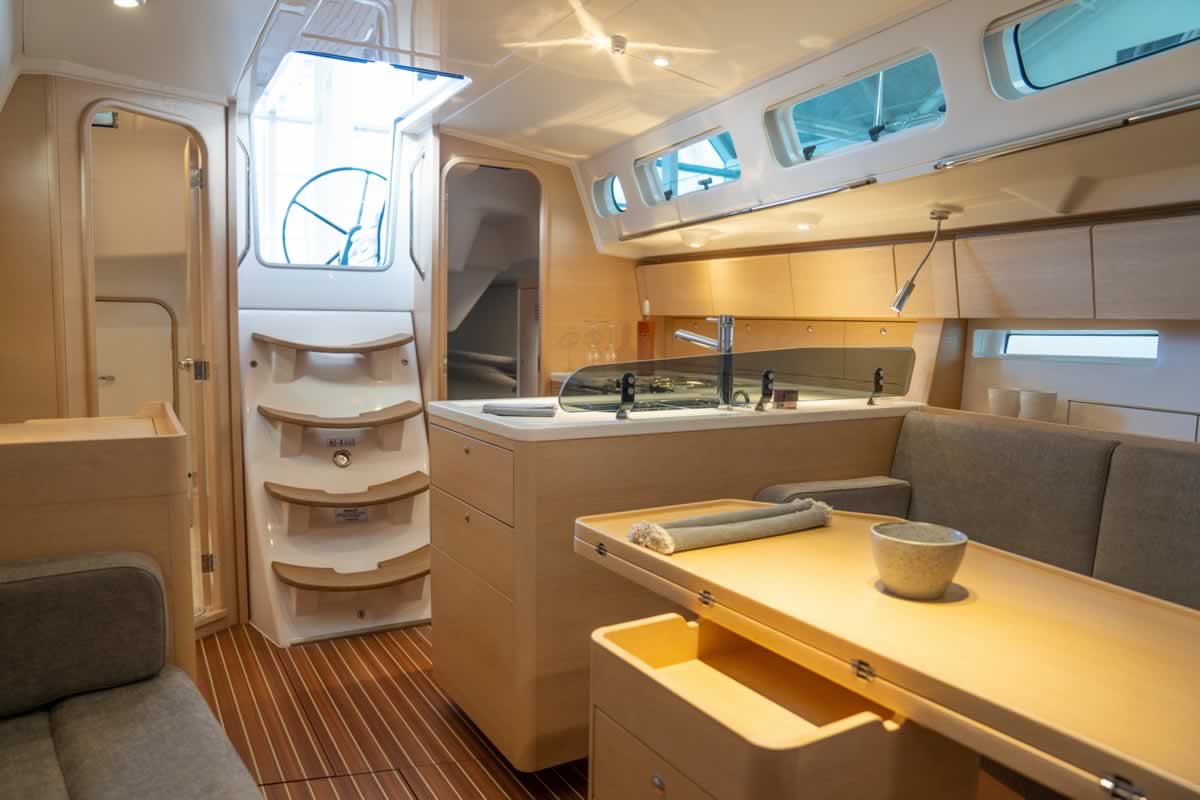

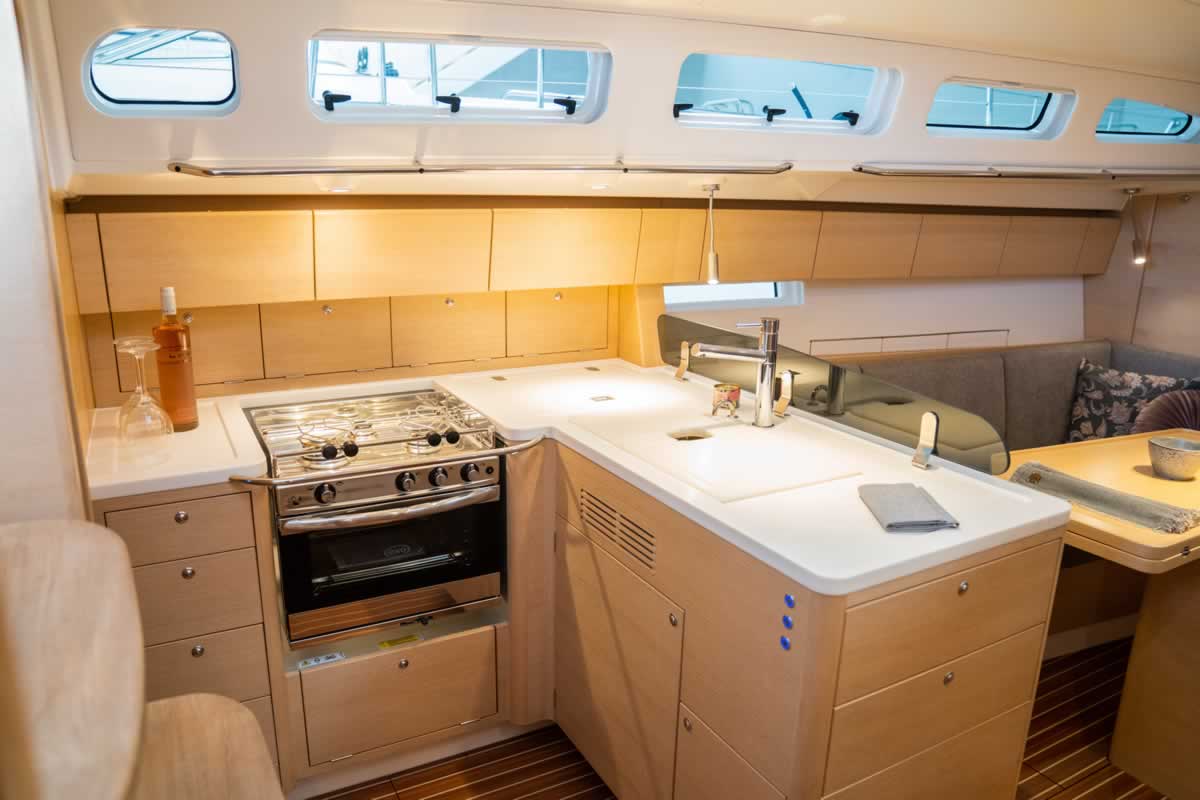

The secure galley is moulded in one piece for minimal weight, and is arranged in an L-shaped configuration for safe working at sea. A gimballed two-jet gas cooker and cool box are fitted as standard. Options include a three-jet cooker with oven and grill, 65-litre fridge and microwave oven.

Specifications

  • Designer:X-Yachts Design Team
  • LOA (including bowsprit):12.17 m 39'11"
  • Hull Length:11.58 m 38'0"
  • Waterline Length:10.36 m 34'0"
  • Beam (max):3.70 m 12'2"
  • Draft - Std:2.1 m 6'11"
  • Draft - Deep:2.4 m 7'10"
  • Air Draft (not including Windex):18.69 m 61'4"
  • Ballast - Std:2760 kg 6085 lbs
  • Displacement - Light:6775 kg 14936 lbs
  • Engine Diesel:21.6 kW 29 hp
  • Fuel Tank - Std:150 ltr 40 gal(US)
  • Water Tank - Std:260 ltr 69 gal(US)
