Xp 50



Description

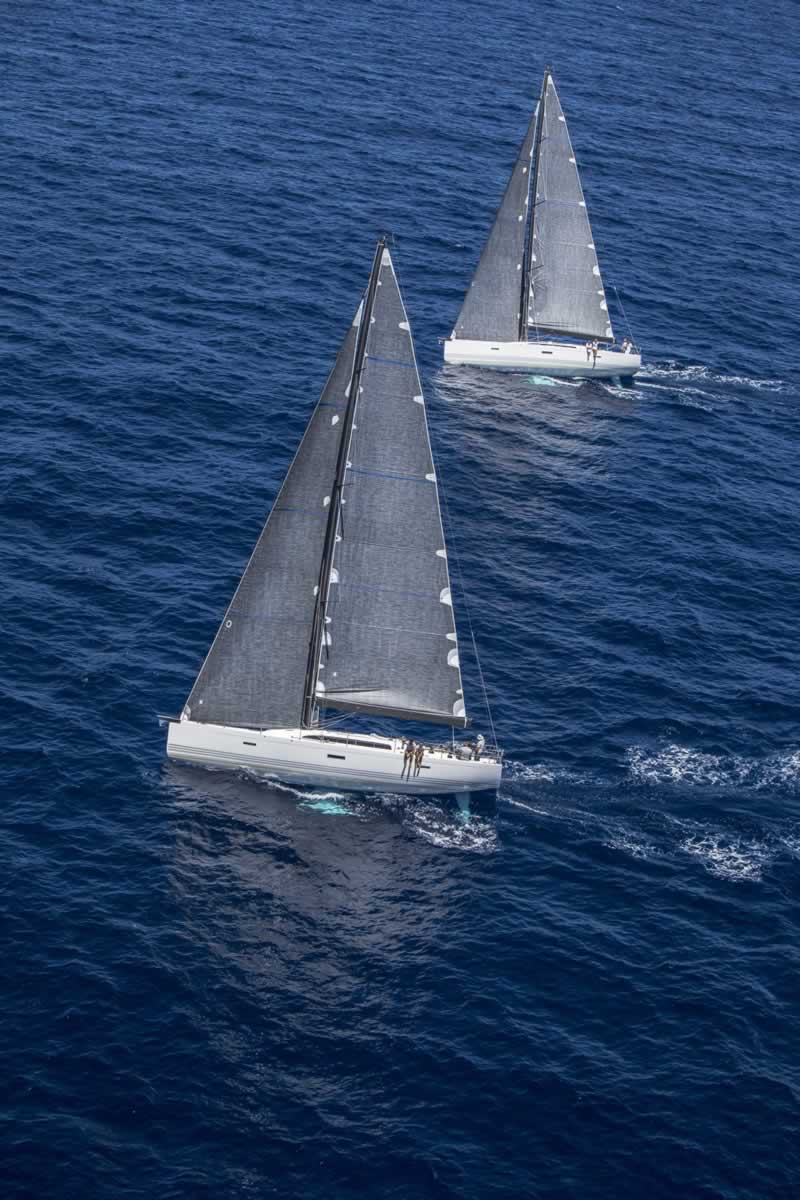

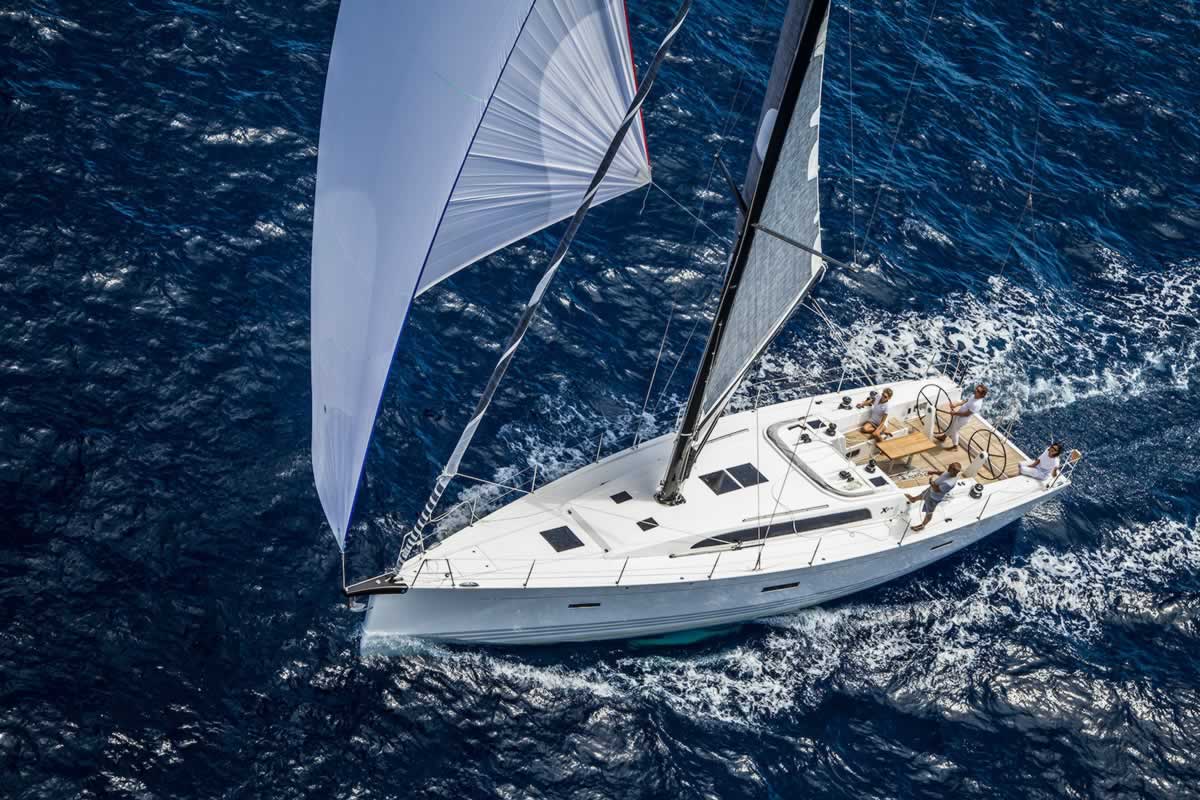

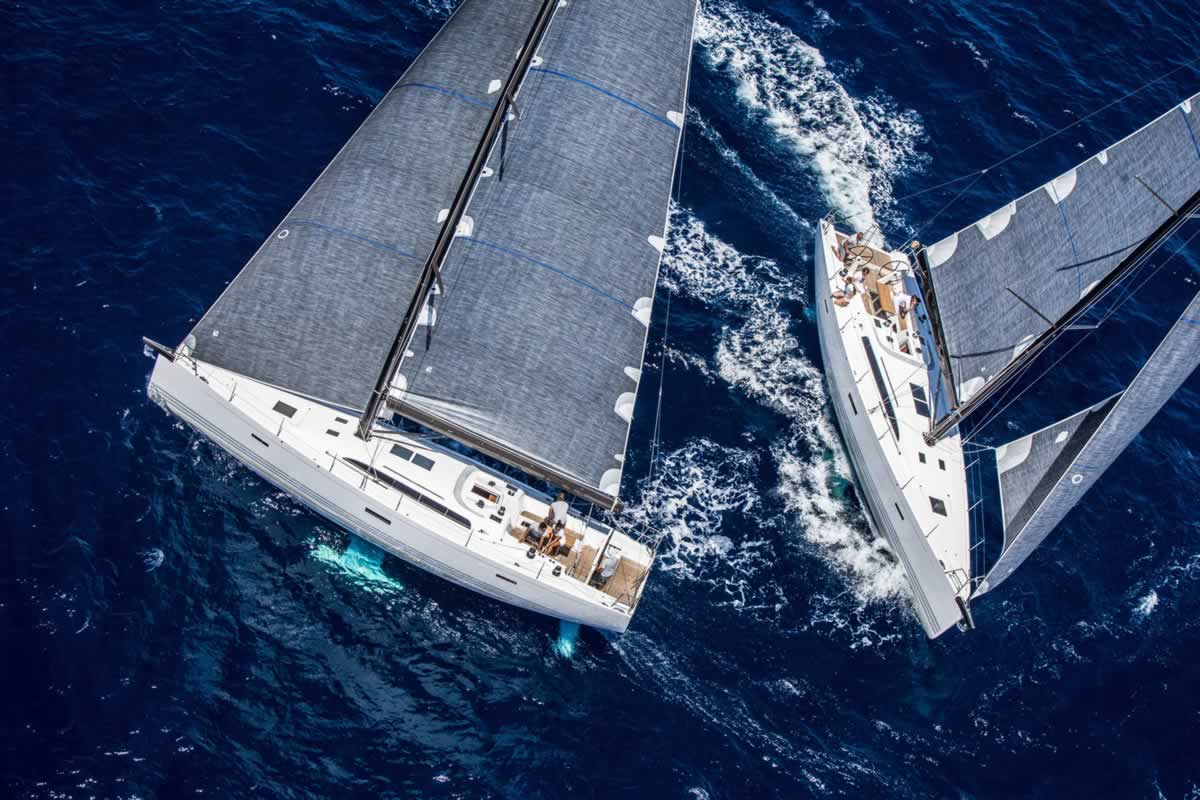

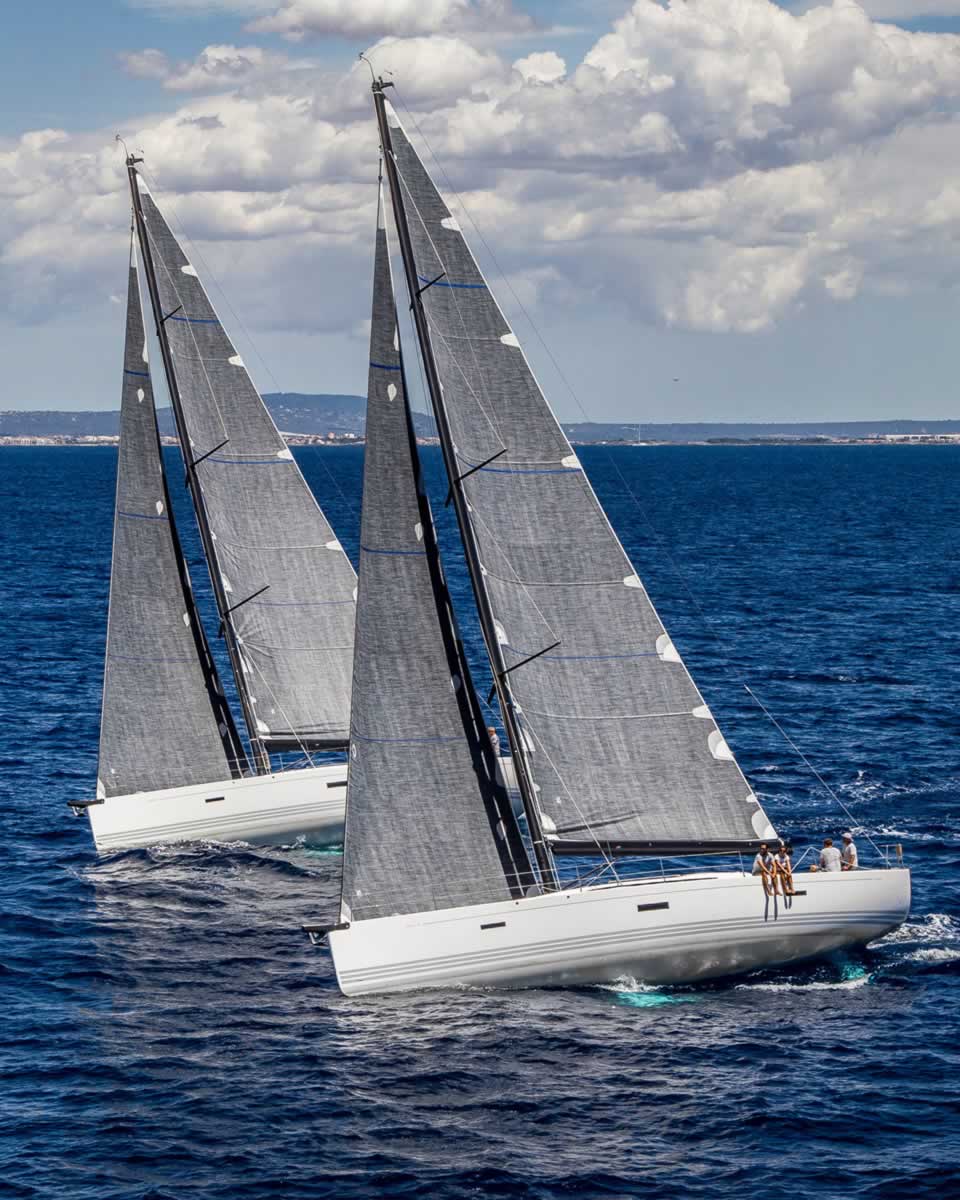

The Xp 50 is a high-performance luxury yacht which offers impressive pace and ease of handling. The longer waterline length of this model allows additional cruising features to be incorporated, as well as increased straight-line speed.

In line with the rest of the Xp range, the 50-footer utilises epoxy infusion build processes for improved stiffness with reduced weight, a carbon keel structure for maximum safety and ultimate stability, and a precision-moulded composite keel with iron fin and lead bulb giving a high ballast ratio.

Exterior

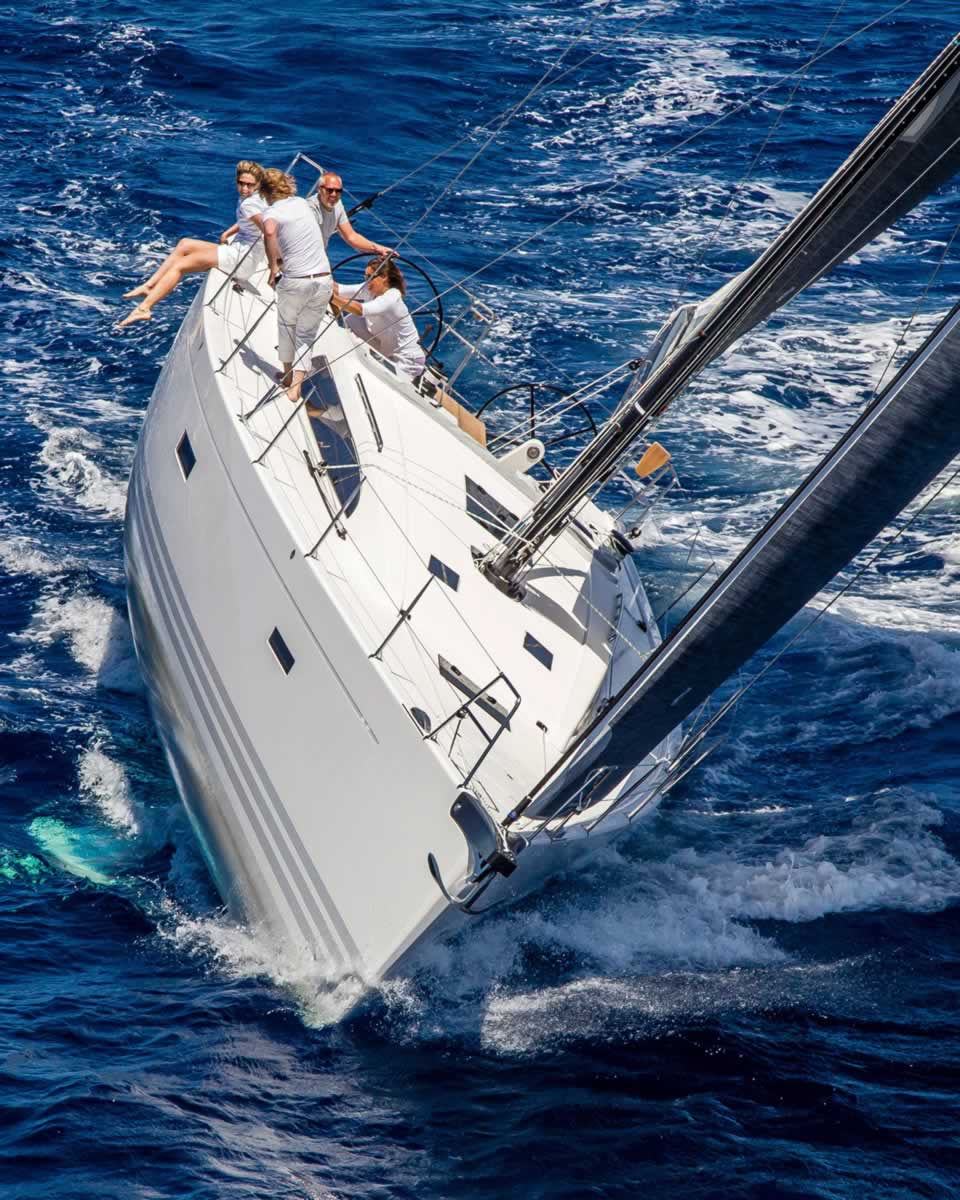

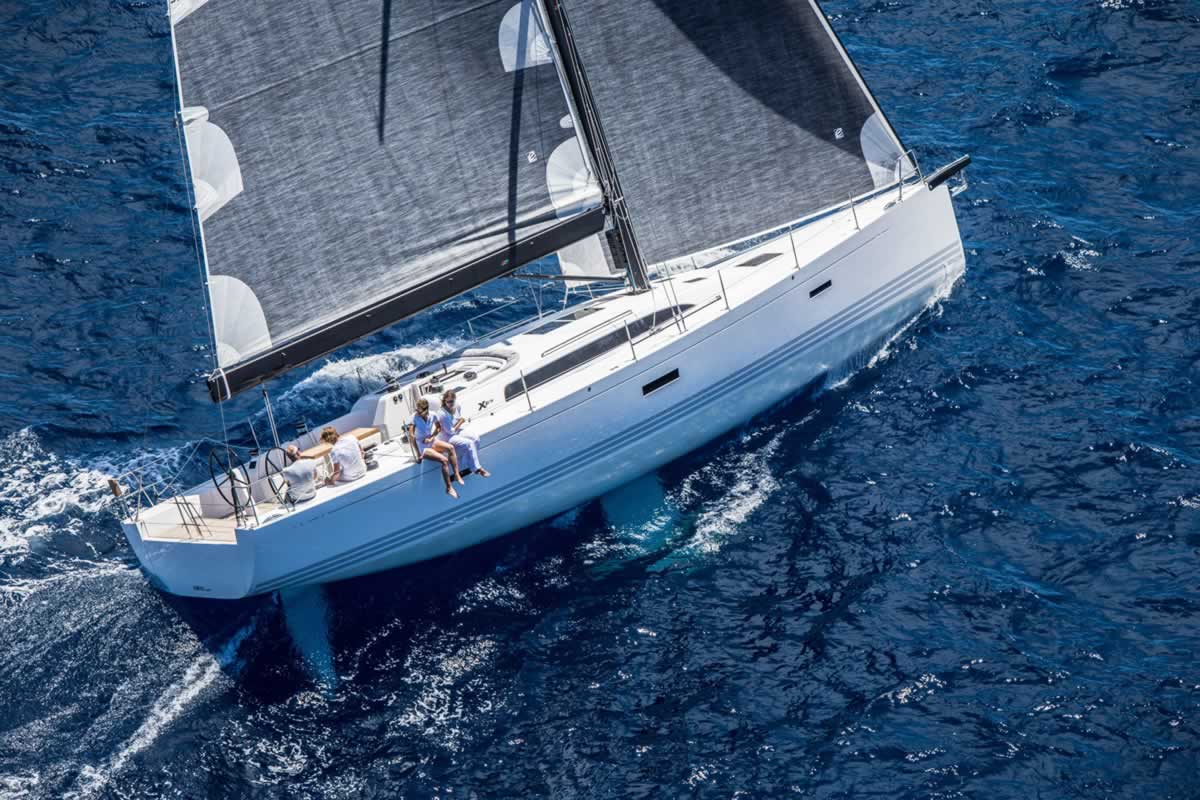

Form meets function with the Xp 50 deck layout, which balances clean lines and minimalist style, with usability, safety and security. Attractive teak decking is fitted as standard, with the option to extend the teak to include side decks and coach roof. The stylish finish is complemented by concealed passages for halyards, sheets and trim lines, together with flush fittings and details such as the folding Nomen mooring cleats.Ergonomics for both cruising and racing have been carefully considered, with the centre console functioning as a handy foot chock for crew sitting on the cockpit benches, whilst the width of the bulwark varies along the length of the yacht to improve the comfort of a ‘hiking’ race crew and ensure aesthetically pleasing lines.

Innovative Bowsprit

The Xp models were conceived as true dual-purpose yachts. The guiding principle is that the Xp 50 should be highly competitive when sailed with a full crew and also easily handled by a couple or family. It should be optimised for racing under major handicap rating systems, but equally suited to a relaxed weekend cruise or a longer blue-water passage.

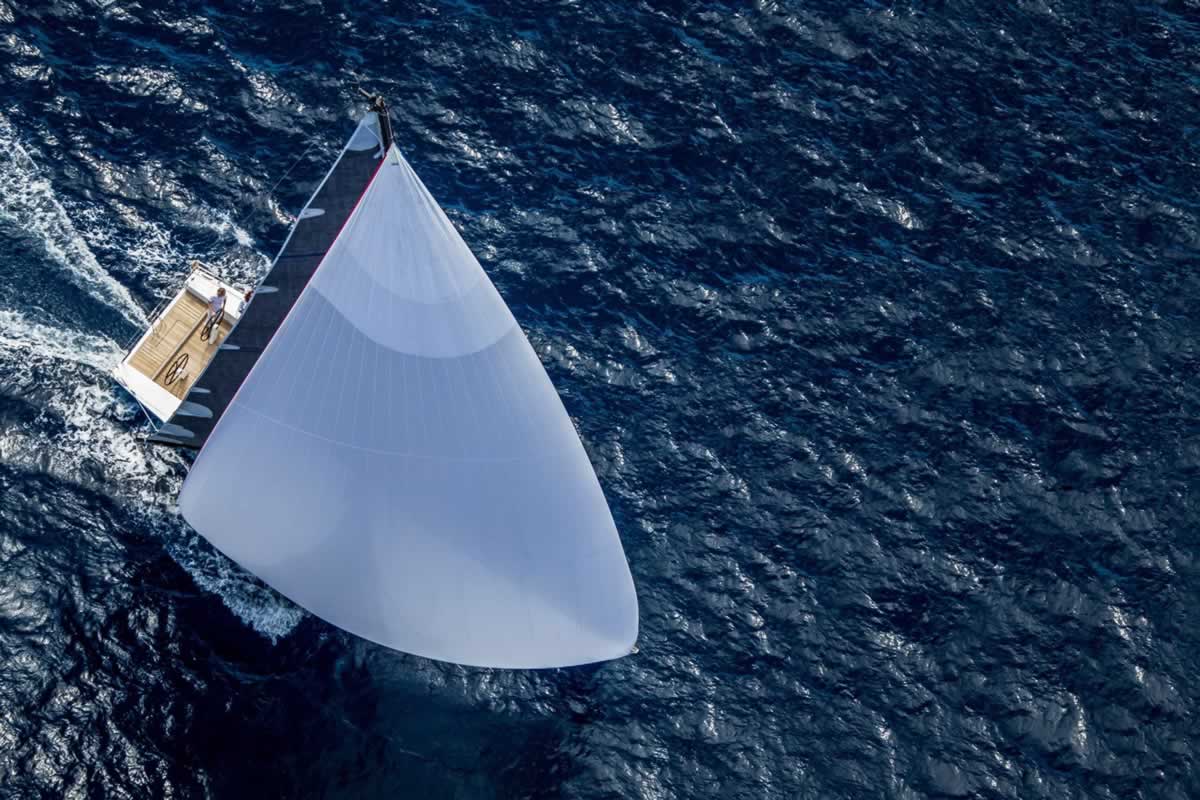

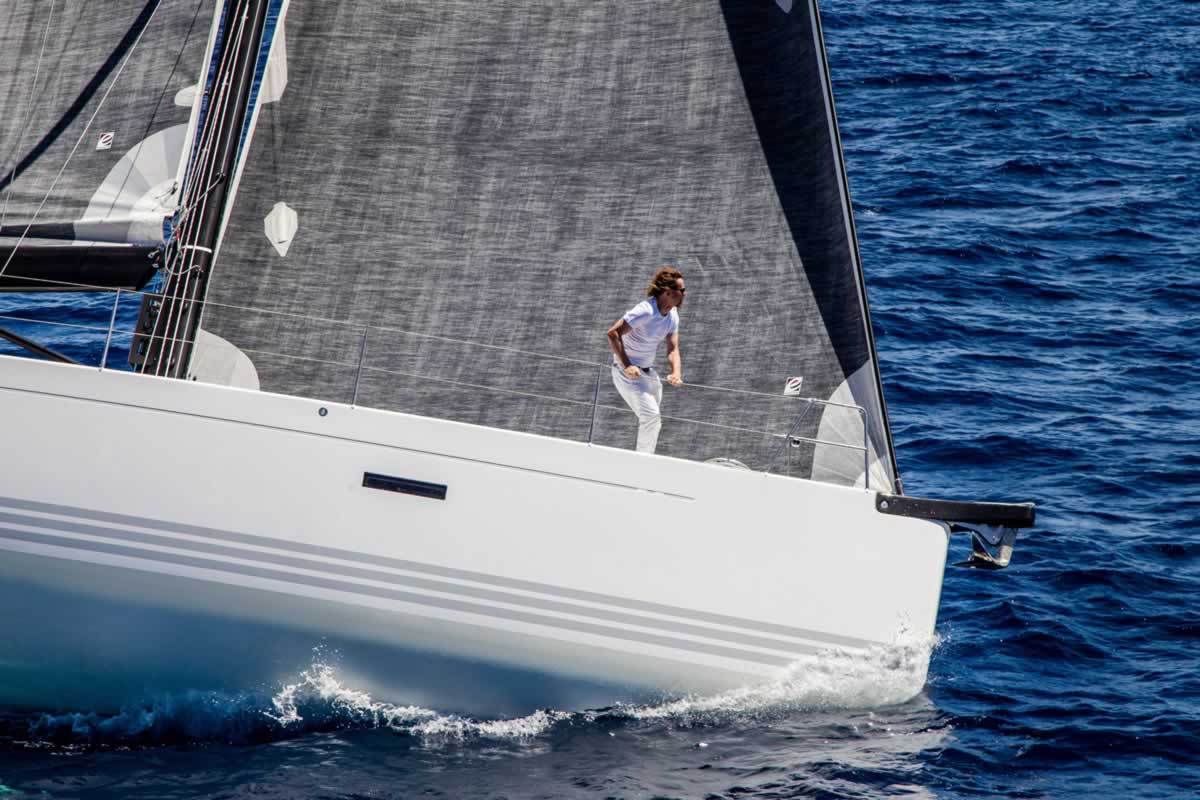

Key to this adaptability is the multi-functional bowsprit, which offers four variations. The standard fixture is a GRP cowl with integrated anchor fitting. This allows for asymmetric ‘Code’ sails and similar to be flown from a fixed tack point, whilst ensuring the steel anchor roller with electric windlass are easily accessible.

Two other popular options are a carbon bowsprit in either white painted finish or clearcoat black, with the additional option of an integrated anchor fitting. The sprit enables a full sail wardrobe of asymmetric spinnakers and reaching Code Zeros to be carried, particularly when racing under IRC. The anchor fitting is neatly concealed under the sprit.

A fourth option of a plain GRP cowl is offered, particularly for boats which may race under ORC. In addition to all of the above, a symmetric spinnaker pole can be carried for further flexibility.

Interior

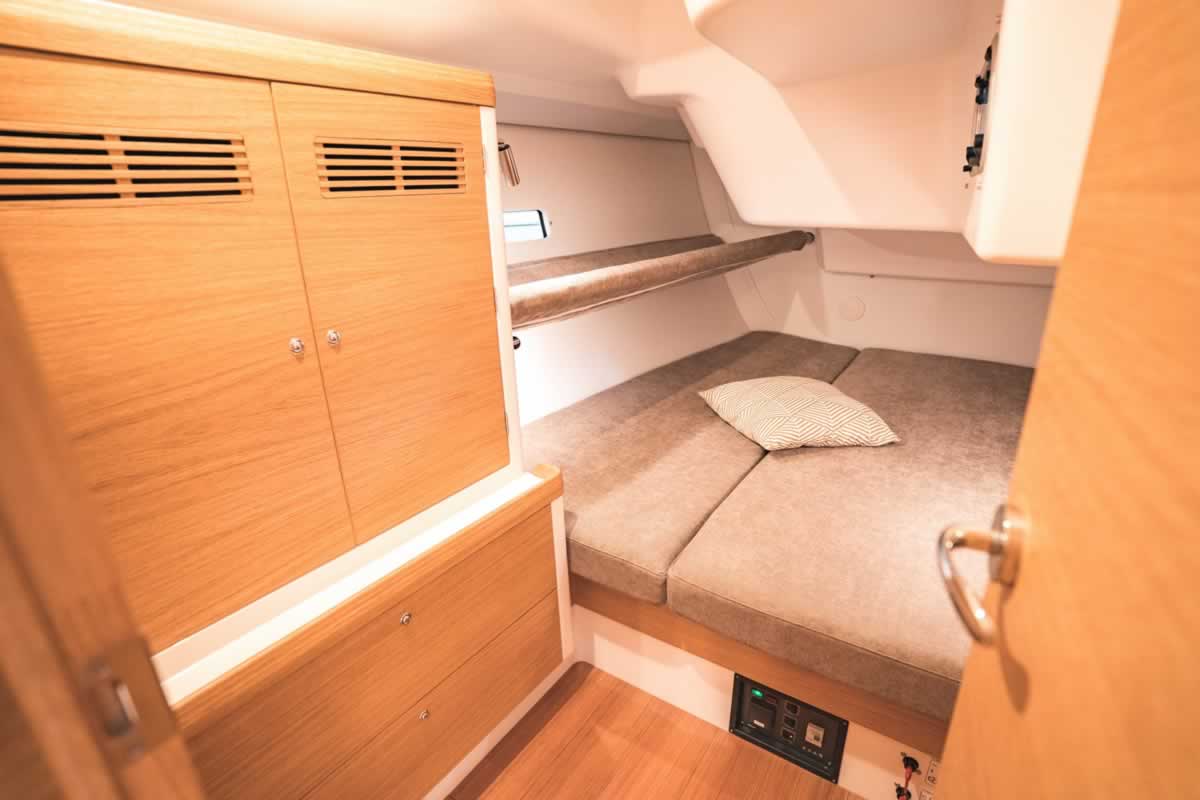

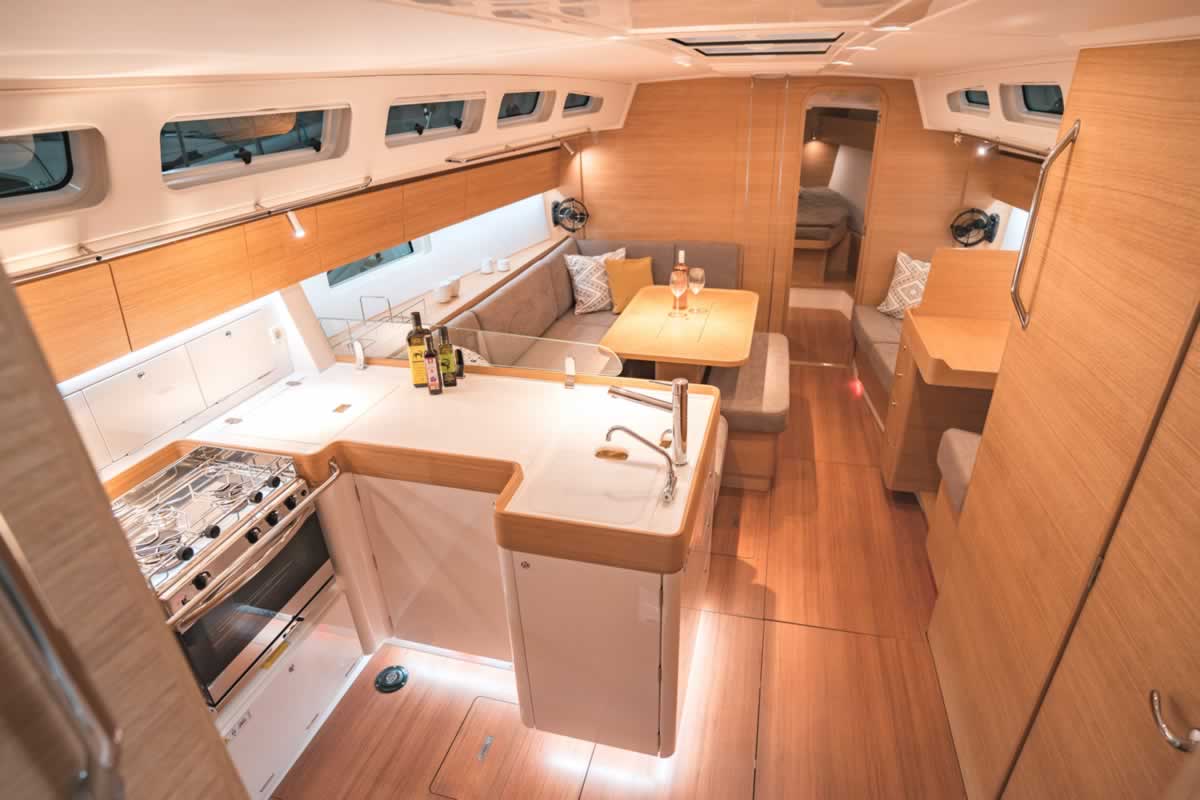

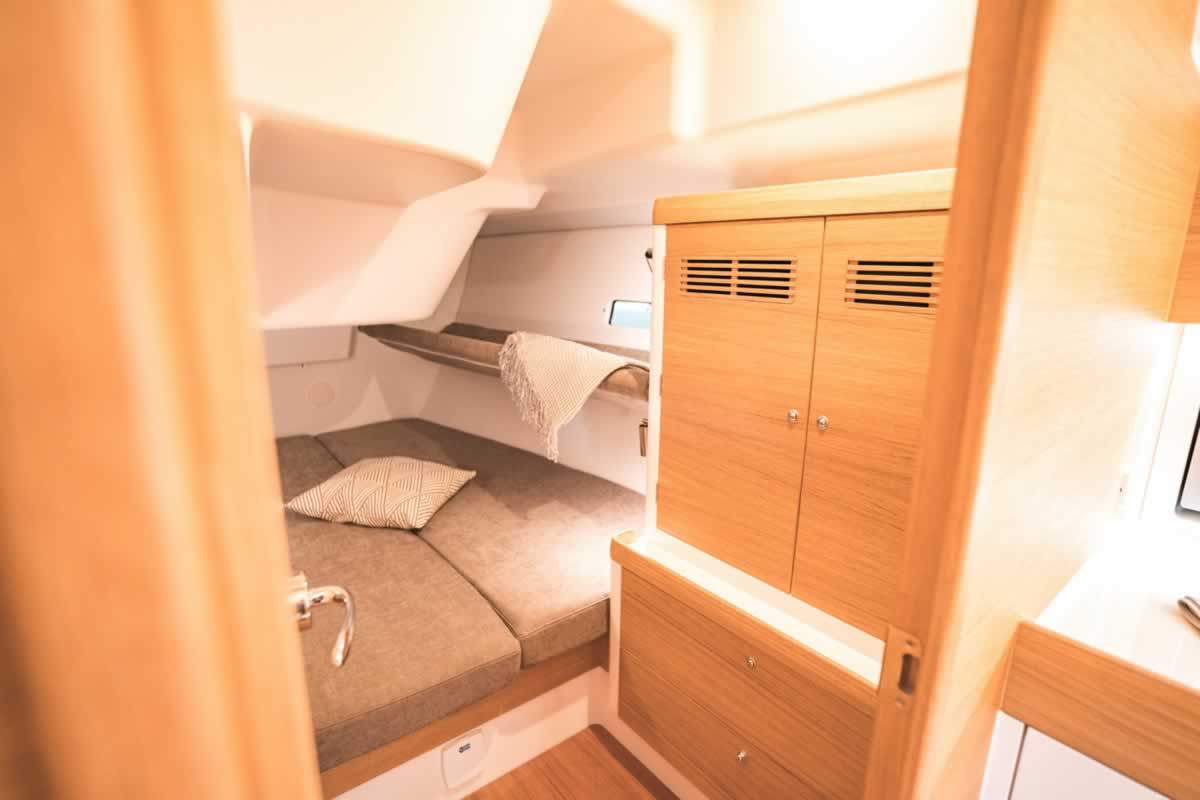

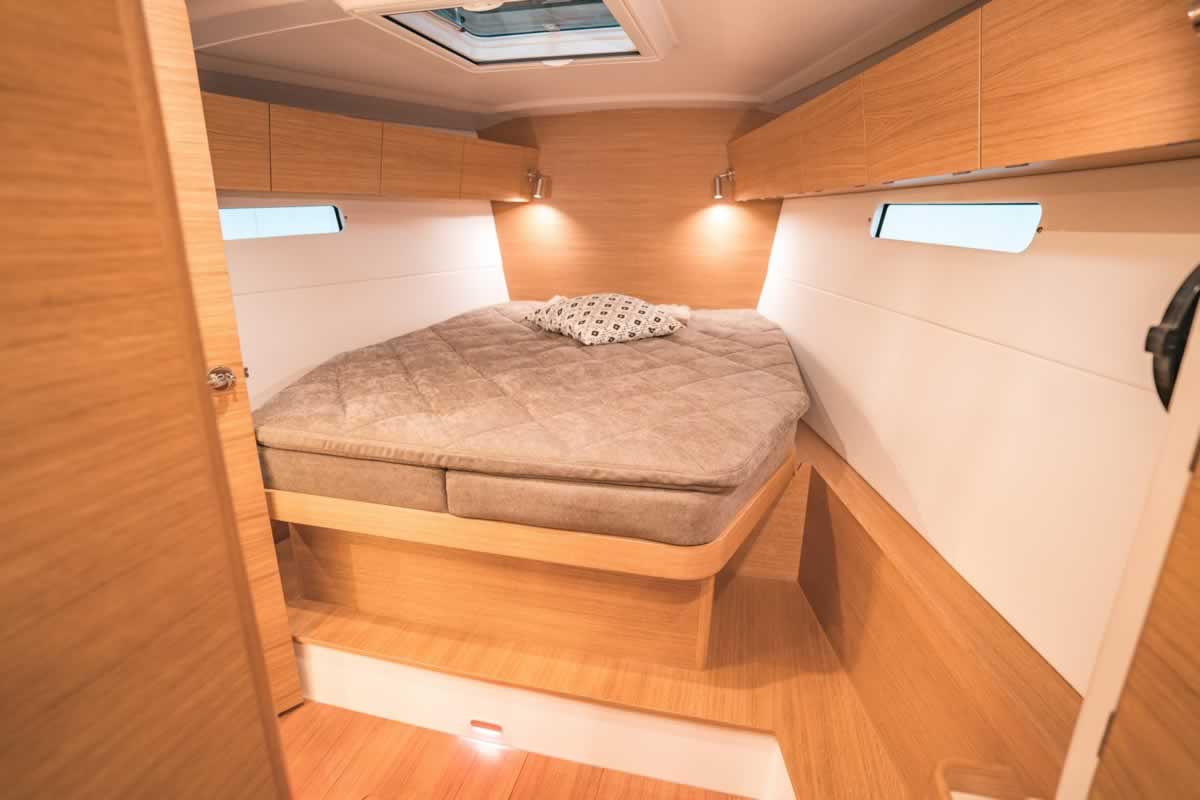

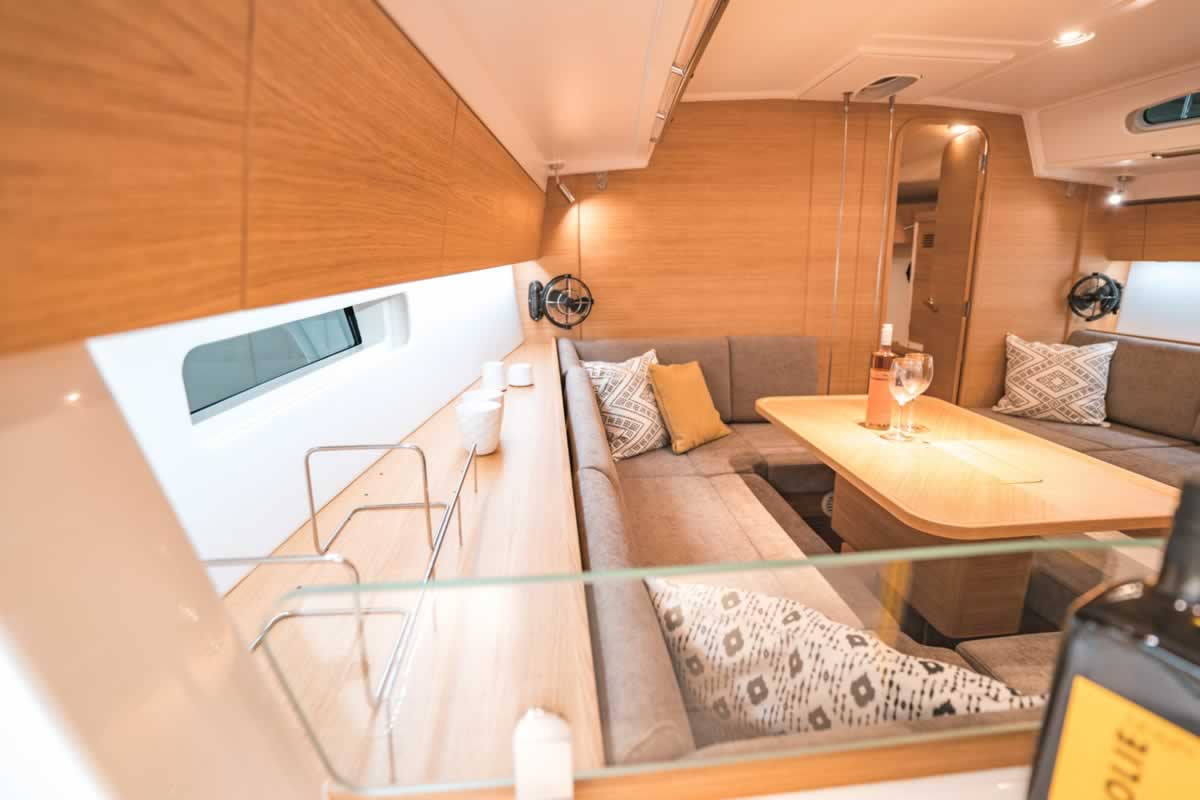

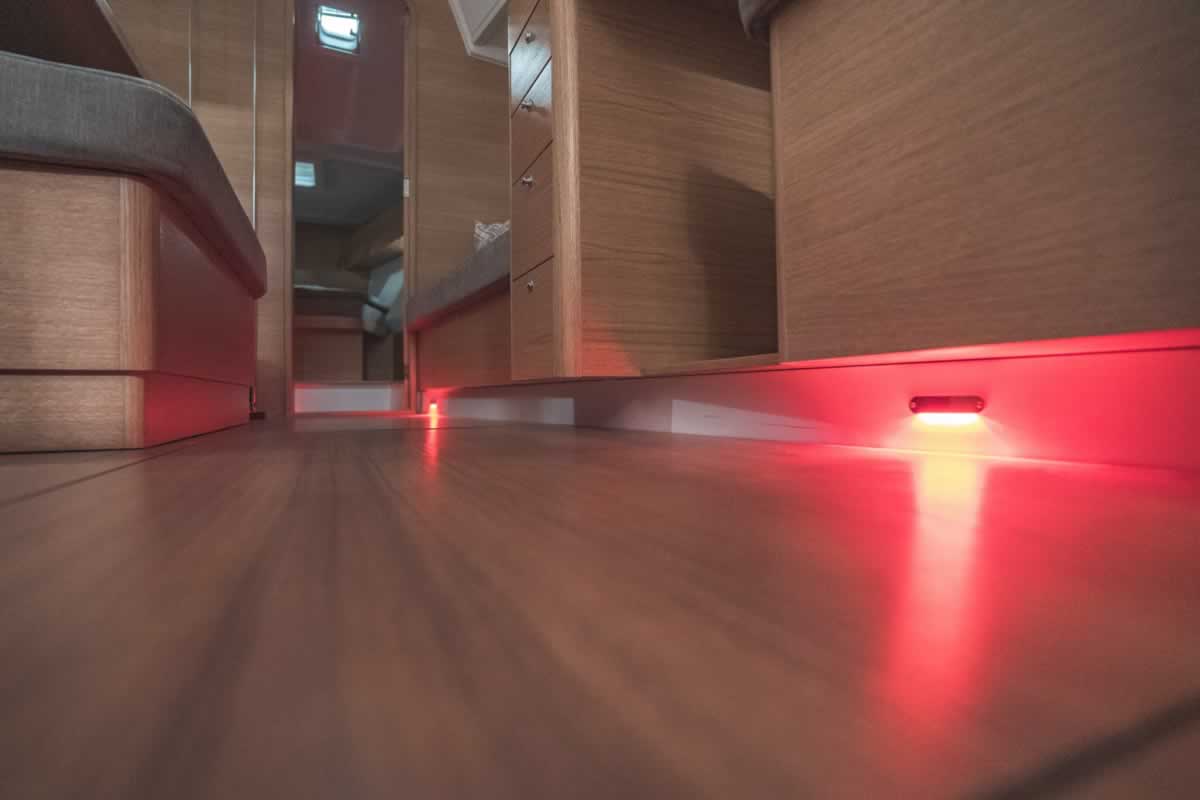

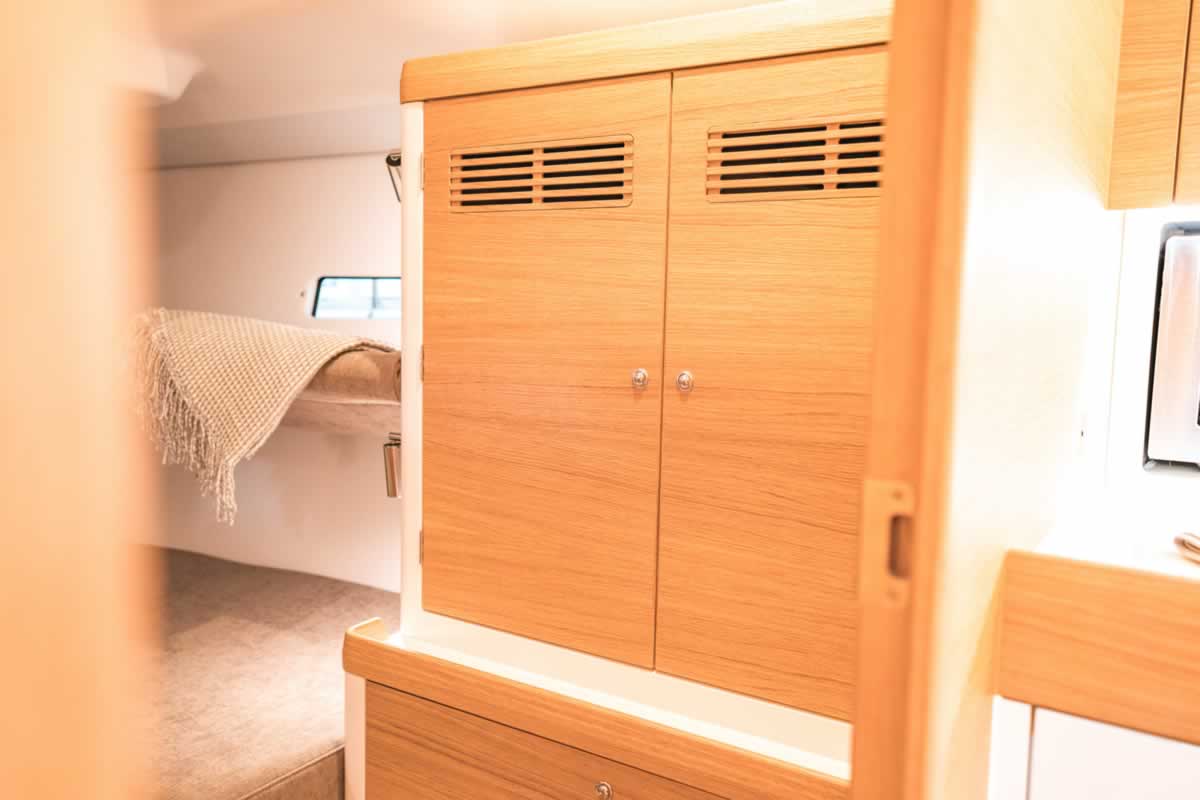

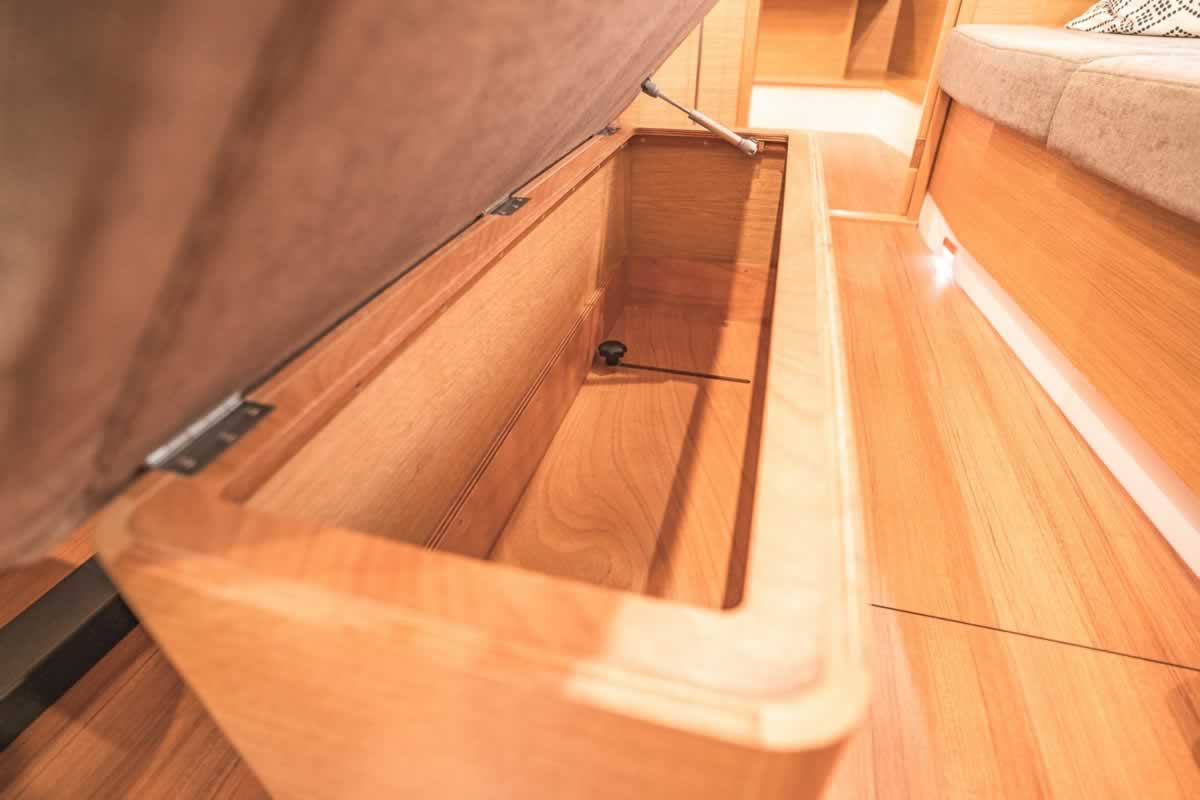

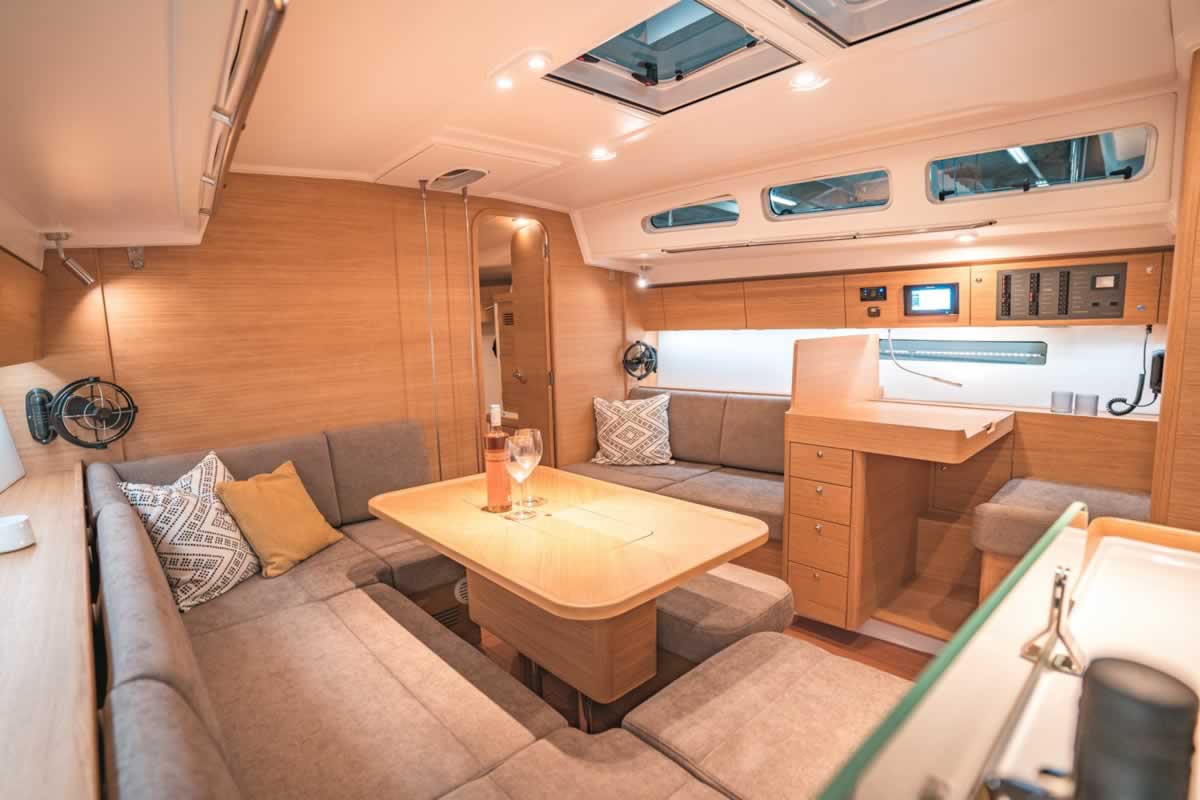

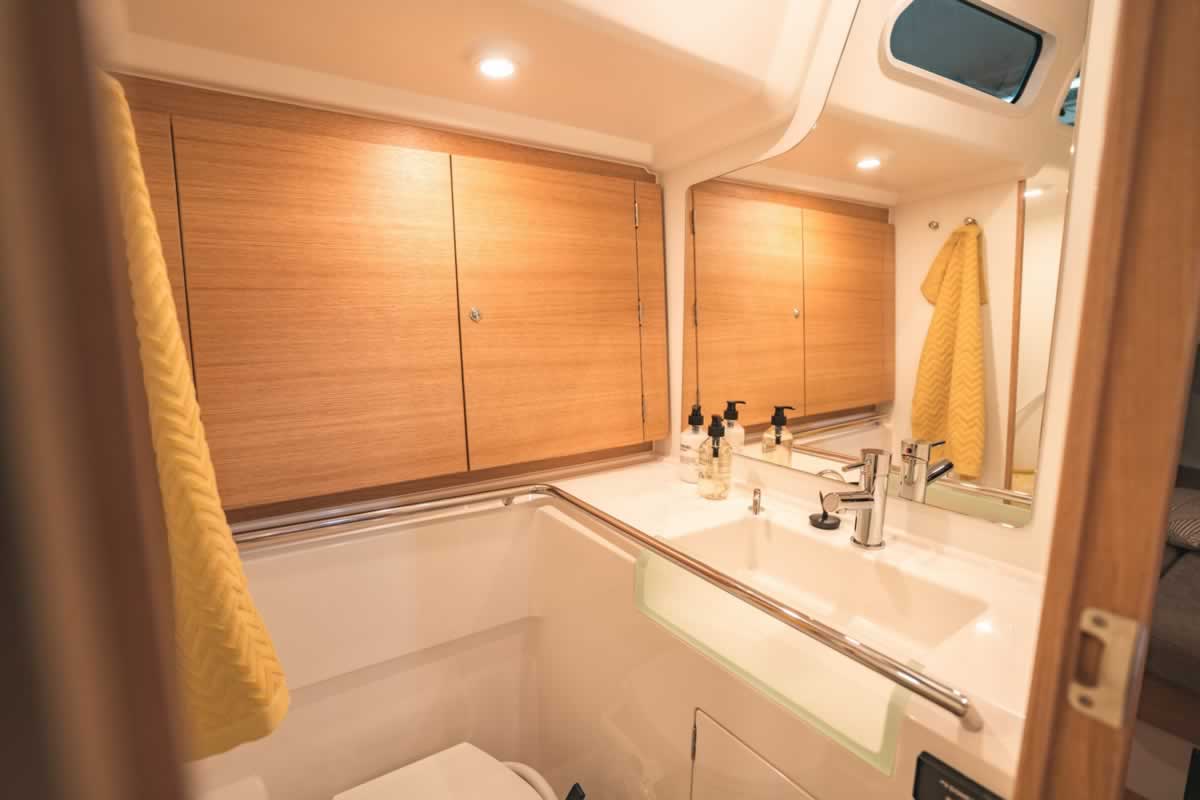

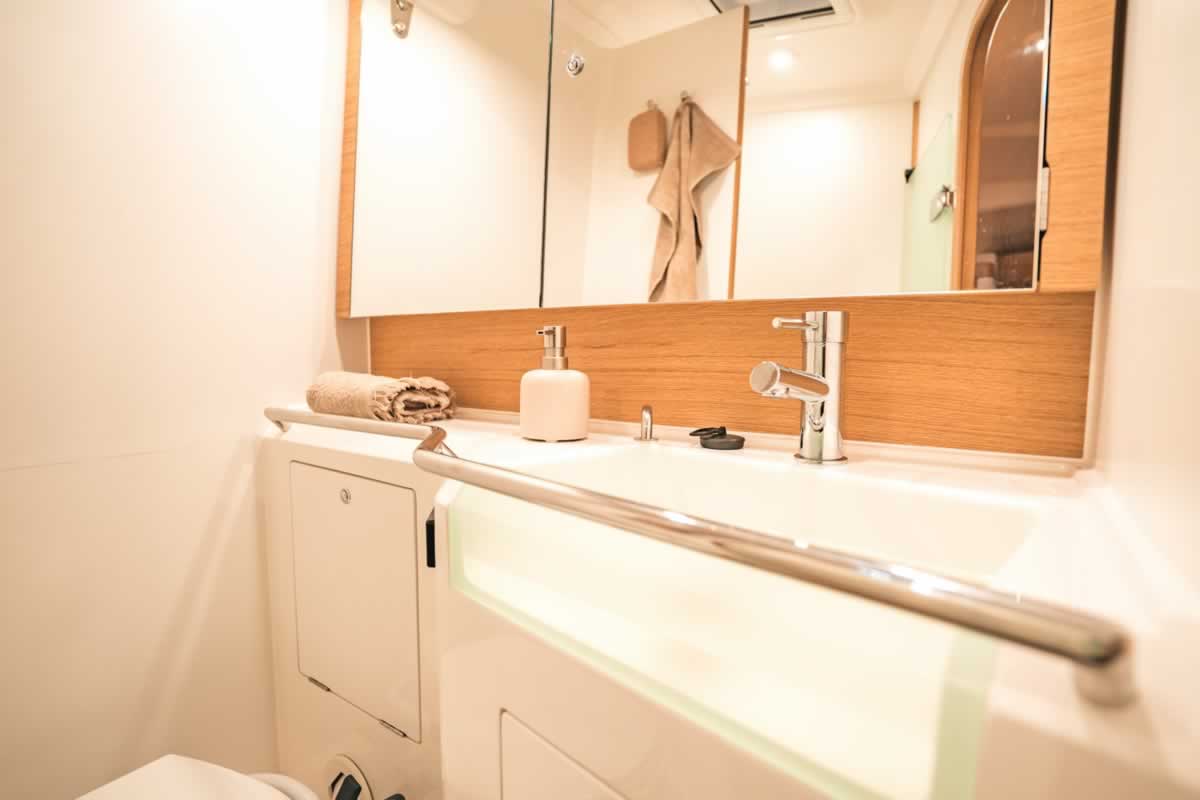

The Xp 50 interior is available in a three cabin layout with twin shower and single shower options, which both benefit from exemplary use of light and space.

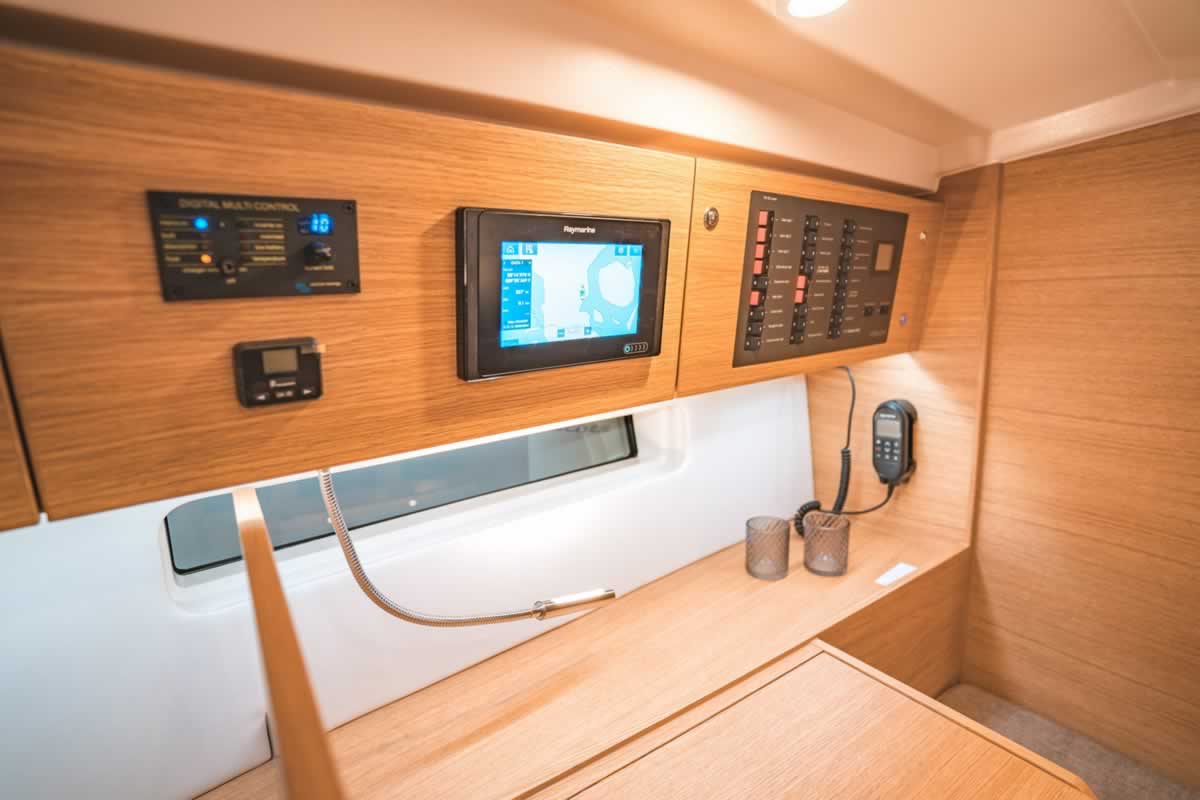

The innovative Xperformance sliding chart table allows the navigator to be seated either forward or aft-facing, or for the chart table to be slid aft to increase the side berth seating.

There is also a fixed chart table option which includes additional storage drawers, with both featuring an easily accessible electronics control panel and deep bookshelves above.

Specifications

  • Designer:X-Yachts Design Team
  • LOA (including bowsprit):15.57 m 51'1"
  • Hull Length:14.99 m 49'2"
  • Waterline Length:13.31 m 43'8"
  • Beam (max):4.43 m 14'6"
  • Draft - Shallow:2.35 m 7'9"
  • Draft - Std:2.65 m 8'8"
  • Draft - Deep:3.0 m 9'10"
  • Air Draft (not including Windex):23.83 m 78'2"
  • Ballast - Std:5600 kg 12346 lbs
  • Displacement - Light:13600 kg 29983 lbs
  • Engine Diesel:55 kW 75 hp
  • Fuel Tank - Std:300 ltr 79 gal(US)
  • Water Tank - Std:550 ltr 145 gal(US)
